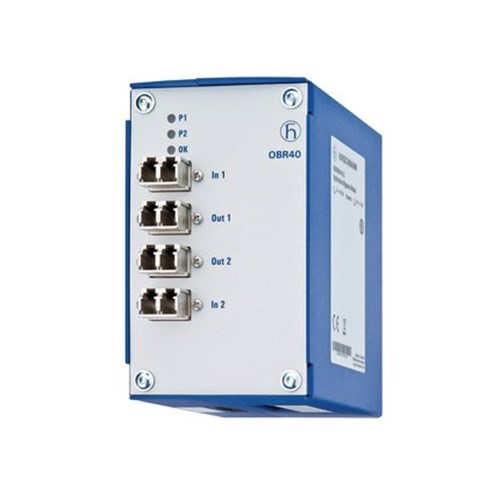

Hirschmann 942 088-101 Optical Bypass Relay 10-60VDC 50/125 μm Multimode

Product Code: 942 088-101

  • Compact 115 mm width for space efficiency
  • Operates in -30 to 70°C range
  • IP30 protection against dust ingress
  • Supports 10-60 VDC voltage range
  • Terminal block mounting for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Optical Bypass Relay
Brand
Hirschmann

Electrical

Electrical Connection
4-pin terminal block
Rated Power
2.5W
Rated Voltage (Ur)
10V to 60V DC

Mechanical

Core Type
Multimode
Port Configuration
4 x LC

Dimensions & Physical Data

Depth
113mm
Height
61mm
Weight
0.5kg
Width
115mm
Core Size
50/125 µm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-30°C to 70°C
IP Rating
IP30

Safety, Standards & Compliance

Standards and Approvals
EU Conformity
