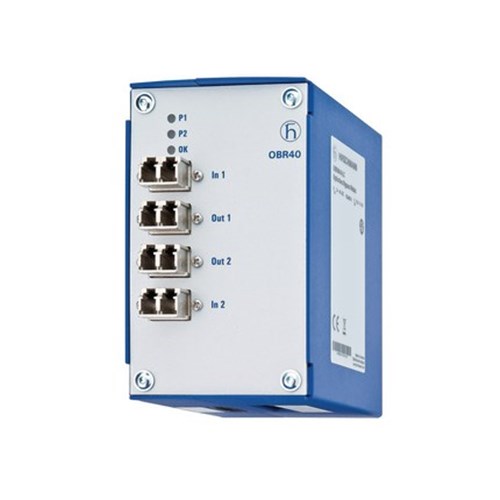

Hirschmann 942 088-001 Optical Bypass Relay 10-60VDC 9/125 µm Single Mode

Product Code: 942 088-001

  • Compact 115 mm width design
  • Operates in -40 to 70°C range
  • IP30 protection rating
  • Handles 10-60 VDC input voltage
  • Terminal block mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Optical Bypass Relay
Brand
Hirschmann

Electrical

Electrical Connection
4-pin terminal block
Rated Power
2.5W
Rated Voltage (Ur)
10V to 60V DC

Mechanical

Core Type
Single
Port Configuration
4 x LC

Dimensions & Physical Data

Depth
113mm
Height
61mm
Weight
0.5kg
Width
115mm
Core Size
9/125 µm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 70°C
IP Rating
IP30

Safety, Standards & Compliance

Standards and Approvals
EU Conformity
