Specifications

Product Type

Managed DIN Rail Switch

Brand

Hirschmann

Series

RSPE

Input Voltage

1 x 60-250V DC (48-320V DC) and 110-230V AC (88-265V AC)

Mounting

DIN rail

Depth 120mm	Height 164mm	Weight 2.2kg
Width 209mm

Operating Temperature

0°C to 60°C

IP Rating

IP20

Connectors/Input/Output 4 x Fast/Gigbabit Ethernet Combo ports plus 8 x Fast Ethernet TX ports expandable with two slots for media modules with 8 Fast Ethernet ports each	Total Ports 12	Traffic Management CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports, IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Jumbo Frames, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, Unknown Multicast Filtering, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN
Network Management Dual Software Image Support, HTTP, HTTPS, IPv6 Management, LLDP (802.1AB), LLDP-MED, SCP, SFTP, SNMP v1/v2/v3, SNMPv3 Traps, SSHv2, Telnet, TFTP, Traps, V.24

Standards and Approvals

CE, FCC, RCM, EN 61131

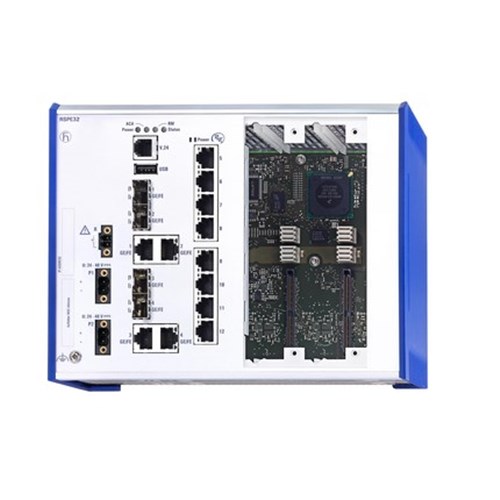

Hirschmann 942 084-999-005 Managed DIN Rail Switch 230VAC
