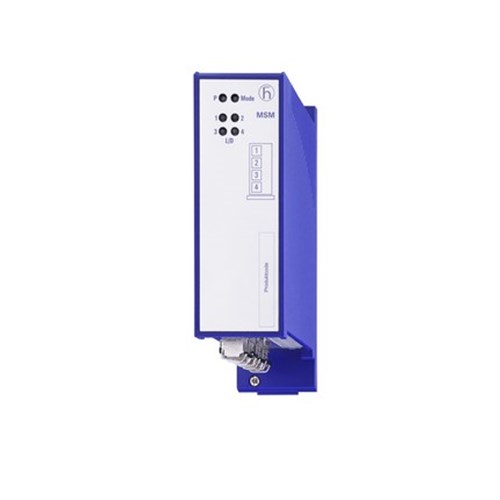

Hirschmann 942 077-999-024 Media Module Ethernet Switch

Product Code: 942 077-999-024

  • Compact module with 38mm width
  • Operates efficiently at 4W power
  • Suitable for temperatures from 0 to 60°C
  • Dimensions: H133mm x D118mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Media Module
Brand
Hirschmann

Electrical

Rated Power
4W
Rated Voltage (Ur)
Power supply via the backplane of the MSP switch

Mechanical

Mounting
Backplane

Dimensions & Physical Data

Depth
118mm
Height
133mm
Weight
195g without SFP transceiver
Width
38mm

Environmental

Operating Temperature without Derating
0°C to 60°C
Storage Temperature
-40°C to 75°C
Operating Temperature
0°C to 60°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
Port 1: 1000/2500 Mbit/s SFP Port; Port 2: 1000/2500 Mbit/s SFP Port; Port 3: 1000/2500 Mbit/s SFP Port; Port 4: 1000/2500 Mbit/s SFP Port

Safety, Standards & Compliance

Standards and Approvals
C-Tick, EN 61131 EN 60950 NEMA TS2

Documents

IPD Product Catalogue V17
