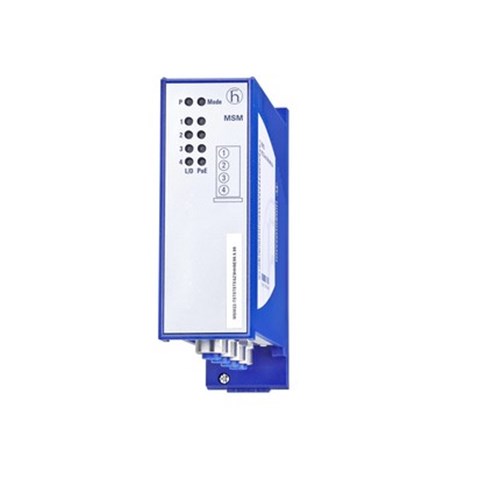

Hirschmann 942 077-999-021 Media Module Ethernet Switch For: PowerMICE Switches (MSP)

Product Code: 942 077-999-021

  • Compatible with PowerMICE switches
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Media Module
Brand
Hirschmann

Electrical

Rated Power
4W + PoE load external
Rated Voltage (Ur)
Power supply via the backplane of the MSP switch and PoE- Power via 48/53 VDC External Power Supply

Mechanical

Mounting
Backplane

Dimensions & Physical Data

Depth
118mm
Height
133mm
Weight
0.225kg
Width
38mm

Environmental

Operating Temperature without Derating
0°C to 60°C
Storage Temperature
-40°C to 85°C
Operating Temperature
0°C to 60°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
Port 1: 10/100/1000BASE-TX, RJ45; Port 2: 10/100/1000BASE-TX, RJ45; Port 3: 10/100/1000BASE-TX, RJ45; Port 4: 10/100/1000BASE-TX, RJ45

Safety, Standards & Compliance

Standards and Approvals
C-Tick, EN 61131 EN 60950 NEMA TS2

Documents

IPD Product Catalogue V17
