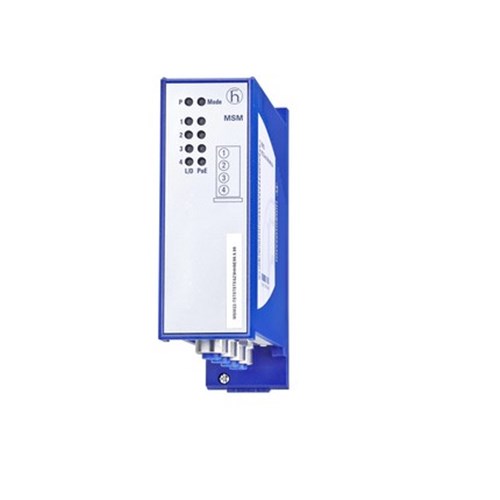

Hirschmann 942 077-999-007 Media Module Ethernet Switch For: PowerMICE Switches (MSP)

Product Code: 942 077-999-007

  • 4W power rating for optimal performance
  • Operates at 48VDC voltage
  • Easy DIN rail mounting system
  • IP30 protection for indoor use
  • Compatible with PowerMICE Switches
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Media Module
Brand
Hirschmann

Electrical

Rated Power
4W
Rated Voltage (Ur)
Power supply via the backplane of the MSP switch

Mechanical

Mounting
Backplane

Dimensions & Physical Data

Depth
118mm
Height
133mm
Weight
0.201kg
Width
38mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 70°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
Port 1: 100BASE-FX, MM-SC; Port 2: 100BASE-FX, MM-SC; Port 3: 10/100BASE-TX, RJ45; Port 4: 10/100BASE-TX, RJ45

Documents

IPD Product Catalogue V17
