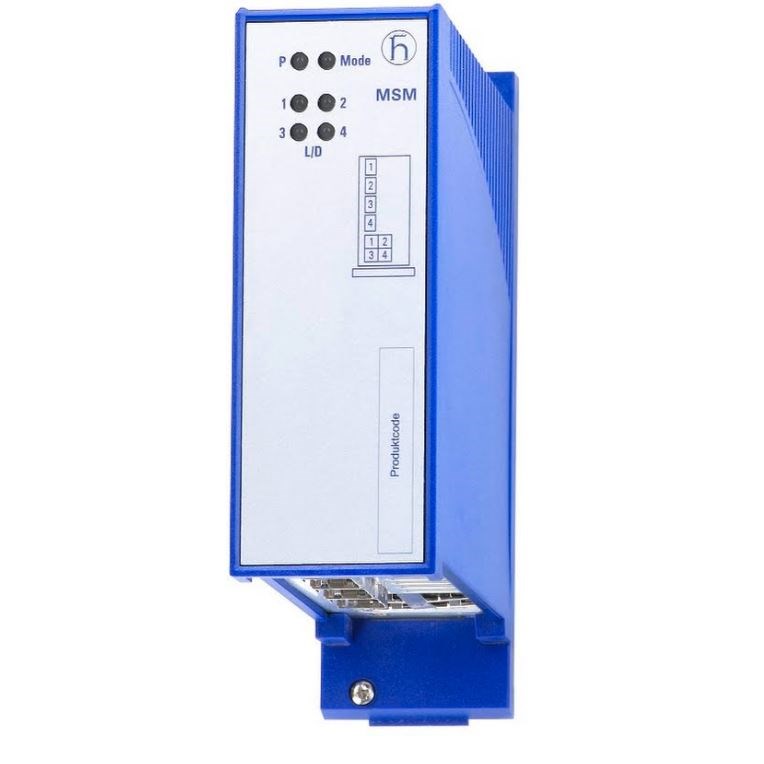

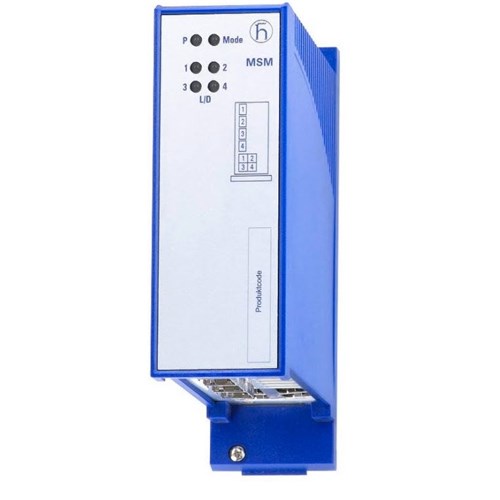

Hirschmann 942 077-999-001 Media Module Ethernet Switch (4) Gigabit Combo For: PowerMICE Switches (MSP)

Product Code: 942 077-999-001

  • Managed switch with 4 Gigabit combo ports
  • Compact design: 38mm W, 133mm H, 118mm D
  • DIN rail mount for easy installation
  • Operates in temperatures from 0 to 60°C
  • IP30 protection rating for reliable use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Media Module
Brand
Hirschmann

Electrical

Rated Power
5W
Rated Voltage (Ur)
Power supply via the backplane of the MSP switch

Mechanical

Mounting
Backplane

Dimensions & Physical Data

Depth
118mm
Height
133mm
Weight
214g without SFP transceiver
Width
38mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
0°C to 60°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
Port 1: Gigabit Combo Port; Port 2: Gigabit Combo Port; Port 3: Gigabit Combo Port; Port 4: Gigabit Combo Port

Safety, Standards & Compliance

Standards and Approvals
C-Tick, EN 61131 EN 60950 NEMA TS2
