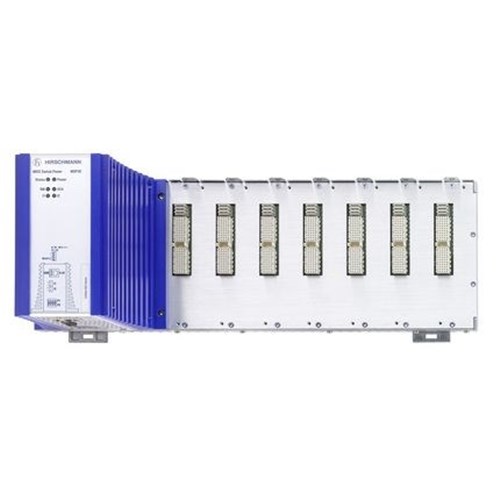

Hirschmann 942 076-998-001 Modular Ethernet Switch 24 x Fast Ethernet 4 x Gigabit Ethernet -Port 24VDC

Industrial Ethernet Switch

Hirschmann

MSP

24V DC (18-32 ) V

DIN rail

142mm

148mm

2.65kg

391mm

0°C to 60°C

IP20

Fast Ethernet ports in total: 24; Gigabit Ethernet ports: 4

28

CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports, GARP Multicast Registration Protocol (GMRP), GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, IP Egress DiffServ Classification and Policing, IP Ingress DiffServ Classification and Policing, IP subnet-based VLAN, Jumbo Frames, MAC-based VLAN, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), Protocol-based VLAN, QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, Unknown Multicast Filtering, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN

DNS Client, Dual Software Image Support, HTTP, HTTPS, LLDP (802.1AB), LLDP-MED, OPC-UA Server, SCP, SFTP, SNMP v1/v2/v3, SSHv2, Telnet, TFTP, Traps, V.24

CE, FCC, EN 61131 IEC 61850-3, IEEE 1613

HiOS Layer 2 Advanced
