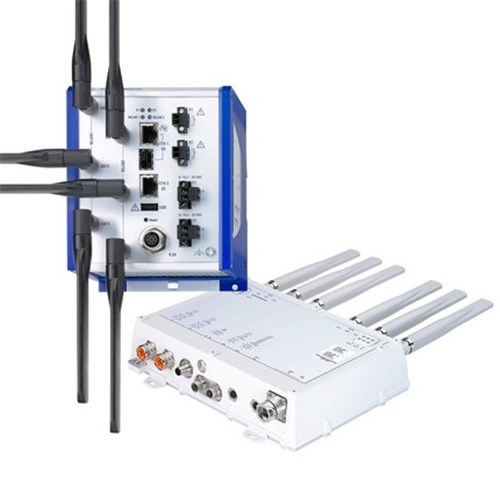

Hirschmann 942 070-999-010 Wireless Access Point

Wireless Access Point

Hirschmann

BAT-R (OpenBAT)

Power 1: 24 .. 48 VDC , Power 2: 24 .. 48 VDC

max. 12.95W , second WLAN module adds max. 4.55W to a total of 17.5W

2 Ethernet (plus WLAN)

Web Interface (HTTPs), IPv4, IPv6, SNMP v1/v2/v3; management software: WLAN Controller, Industrial HiVision, LANConfig; Auto Configuration Adapter (ACA) for Plug&Play device replacement, HiDiscovery v1

8-pin "A"-coded M12 socket, Serial console, Automatic Point-2-Point configuration between two devices (Coach-to-Coach coupling). AT modem.

Power 1: 2-pin terminal block , Power 2: 2-pin terminal block

Signal 1: 2-pin terminal block , Signal 2: 2-pin terminal block

RJ45, SFP (ComboPort), 8-pin A-coded M12 (V.24), USB Type A, 3x RP-SMA female per WLAN interface, 2-pin terminal blocks

IPerf Server and Client, System Log, Syslog, Ping, detailed trace functionality, (W)LANMonitor, SNMP

metal

BAT-RAUWW9ACC99AO7T1T9999HXX.X

DIN-Rail

Ethernet 1: ComboPort 10/100/1000 via RJ45 or SFP; Ethernet 2: 10/100/1000 via RJ45; WLAN IEEE 802.11a/b/g/n

Yes (HiLCOS software features: VLAN)

121mm

145mm

1.5kg

151mm

-40°C to 85°C

-40°C to 70°C

IP20

Can be disabled in software., USB Type A socket, compatible with ACA21-USB EEC and ACA22-USB EEC

2 Ethernet (plus WLAN)

Safety of IT equipment: IEC/EN 60950-1, IEC 62368-1:2018; EN IEC 62368-1:2020+A11:2020; Railway norm: EN 50121-4, EN 50121-3-2; Radio: EN 300 328 (2.4 GHz), EN 301 893 (5 GHz), EN 302 502 (5.8 GHz); Country certification: Australia, New Zealand

Encryption: Open, WEP, 802.11i - WPA/WPA2 - Personal (PSK), 802.11i - WPA/WPA2 - Enterprise (802.1X: TLS, TTLS/PAP, TTLS/CHAP, TTLS/MSCHAP, TTLS/MSCHAPV2, TTLS/MD5, PEAP/MSCHAPV2), WPA3 Personal and Enterprise (AES-CCMP-128, AES-CCMP-256, AES-GCMP-128, AES-GCMP-256); firewall (HiLCOS)
