Product Code: 942 070-999-001

Compact DIN rail mounting for easy installation
Wide voltage range of 24-48V power supply
Dual Ethernet ports with high-speed connectivity
Durable metal housing ensures long-lasting use
Complies with IEC/EN61850-3:2014 and IEEE 1613:2009 standards

Specifications

General

Product Type

Firewall

Brand

Hirschmann

Series

Eagle 20/30

Electrical

Connectors 3× RP-SMA Female for each WLAN interface, requires antennas with RP-SMA Male connectors	Communication Protocols IEEE 802.11a/b/g/n WLAN as per IEEE 802.11n	Rated Power max. 12.95W , second WLAN module adds max. 4.55W to a total of 17.5W
Rated Voltage Power 1: 24 .. 48 VDC , Power 2: 24 .. 48 VDC

Mechanical

Material

metal

Mounting Type

DIN-Rail

Dimensions & Physical Data

Depth 121 mm	Height 145 mm	Weight 1500 g
Width 151 mm

Environmental

Storage Temperature

-40-+85 °C

Operating Temperature

0 -+60 -25-+70 °C

IP Rating

IP20

Communication & Control

Port Type Ethernet 1: ComboPort 10/100/1000 via RJ45 or SFP , Ethernet 2: 10/100/1000 via RJ45	USB Port Can be disabled in software., USB Type A socket, compatible with ACA21-USB EEC and ACA22-USB EEC	Radio Frequency Freely configurable between 2.4 GHz and 5 GHz independently on each WLAN interface: 2400 -2483.5 MHz (ISM) and 5170 -5850 MHz (additional regulatory restrictions apply depending on the country of operation)
Modulation 20M0F7D (DSSS/OFDM) @ 2.4 GHz, 20M0G7D (OFDM) @ 5 GHz, MCS 0 - MCS23	Radio Features WLAN 1: 3x3 MIMO, up to 3 streams (configurable) . Integrated ESD protection, Clear Space® . WLAN 2: 3x3 MIMO (configurable), up to 3 streams (configurable)	Encryption Open, WEP, 802.11i - WPA/WPA2 - Personal (PSK), 802.11i - WPA/WPA2 - Enterprise (802.1X: TLS, TTLS/PAP, TTLS/CHAP, TTLS/MSCHAP, TTLS/MSCHAPV2, TTLS/MD5, PEAP/MSCHAPV2), WPA3 Personal and Enterprise (AES-CCMP-128, AES-CCMP-256, AES-GCMP-128, AES-GCMP-256)

Safety, Standards & Compliance

Standards and Approvals

IEC/EN 60950-1, IEC 62368-1:2018; EN IEC 62368-1:2020+A11:2020 IEC/EN 61850-3:2014 (Communication networks and systems in substations), IEEE 1613:2009 (Devices in Electrical Power Substations) EN50121-4, EN50121-3-2 EN 300 328 (2.4 GHz), EN 301 893 (5 GHz), EN 302 502 (5.8 GHz)

Accessories & Additional Information

Development Software

WLAN Controller, Industrial HiVision, LANConfig

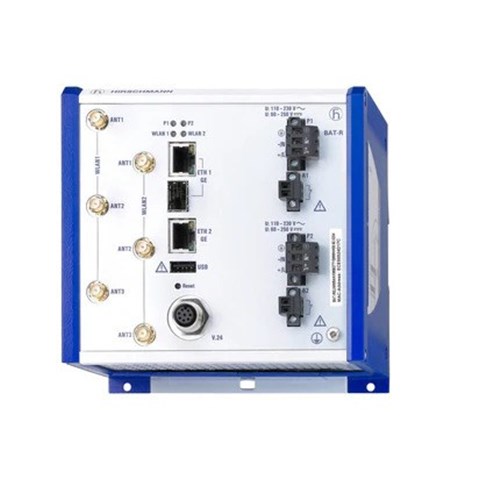

Hirschmann 942 070-999-001 Wireless Access Point 24-48 V Power
