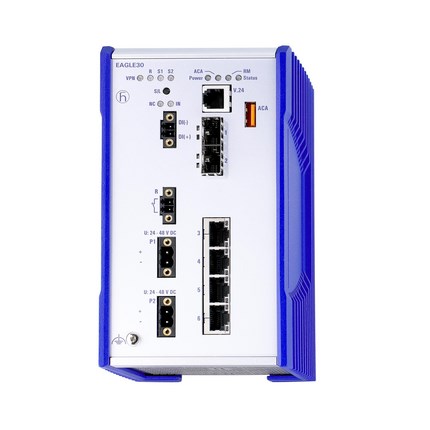

Hirschmann 942 058-999-009 Firewall & Security Router

Product Code: 942 058-999-009

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Firewall
Brand
Hirschmann
Series
EAGLE20

Electrical

Connectors
4 ports in total, Ports Fast Ethernet: 4 x 10/100BASE TX / RJ45
Rated Power
12W

Mechanical

Mounting
DIN Rail
Port Configuration
4 ports in total, Ports Fast Ethernet: 4 x 10/100BASE TX / RJ45

Dimensions & Physical Data

Depth
120mm
Height
164mm
Weight
1.2kg
Width
90mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
0°C to 60°C
IP Rating
IP20

Communication & Control

USB Port
1 x USB to connect auto-configuration adapter ACA22-USB

Safety, Standards & Compliance

Standards and Approvals
CE; FCC; EN 61131; EN 60950
