Specifications

Product Type

Industrial Firewall And Security Router

Brand

Hirschmann

Digital Inputs 1 x plug-in terminal block, 2-pin	Operating Voltage 2x 60/110/125/220/250 VDC (48V - 320 VDC) and 110/120/220/230 VAC (88 - 265 VAC)	Power Consumption 14W
No. of Ports 2 x SFP (100/1000 Mbit/s), 4 x 10/100BASE TX / RJ45	V.24 Interface 1 x RJ11	Power Supply 2 x plug-in terminal block, 3-pin
Signaling Contact 1 x plug-in terminal block, 2-pin	Network Cable Type Twisted pair, Single mode fiber (SM) 9/125 µm, Single mode fiber (LH) 9/125 µm, Multimode fiber (MM) 50/125 µm, Multimode fiber (MM) 62.5/125 µm

Mounting

Din Rail

Port Configuration

Ethernet Ports

SD-Card Slot

1 x SD card

Depth 120mm	Height 164mm	Weight 1.2kg
Width 90mm	Network Cable Length 0-100 m (Twisted pair)

Storage Temperature

-40°C to 85°C

Operating Temperature

0°C to 60°C

IP Rating

IP20

USB Port

1 x USB

Standards and Approvals

CE, FCC, EN 61131, EN 60950, IEC 61850-3, IEEE 1613

Security Features

Multipoint VPN ( IPSec VPN), Stateful inspection firewall ( DoS prevention)

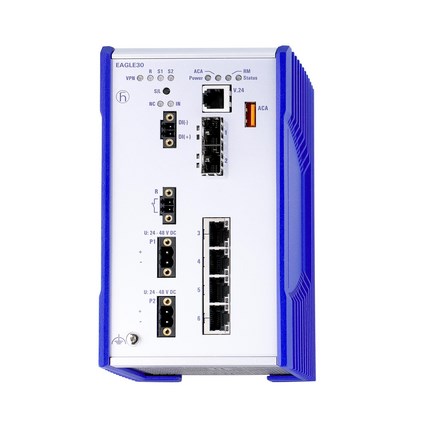

Hirschmann 942 058-999-008 Firewall & Security Router
