Product Code: 942 058-999-004

19W power rating for efficient performance
Operates at 230VAC for standard use
Easy DIN rail mounting system
IP20 protection for indoor installations
Equipped with 4 FE ports for connectivity

Specifications

General

Product Type

Firewall

Brand

Hirschmann

Series

EAGLE20

Electrical

Connectors

4 ports in total, Ports Fast Ethernet: 4 x 10/100BASE TX / RJ45

Rated Power

12W

Mechanical

Mounting

DIN Rail

Port Configuration

4 ports in total, Ports Fast Ethernet: 4 x 10/100BASE TX / RJ45

Dimensions & Physical Data

Depth 120mm	Height 164mm	Weight 1.2kg
Width 90mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

0°C to 60°C

IP Rating

IP20

Communication & Control

USB Port

1 x USB to connect auto-configuration adapter ACA22-USB

Safety, Standards & Compliance

Standards and Approvals

CE; FCC; EN 61131; EN 60950 IEC 61850-3; IEEE 1613

Accessories & Additional Information

Development Software

L3 Firewall Software

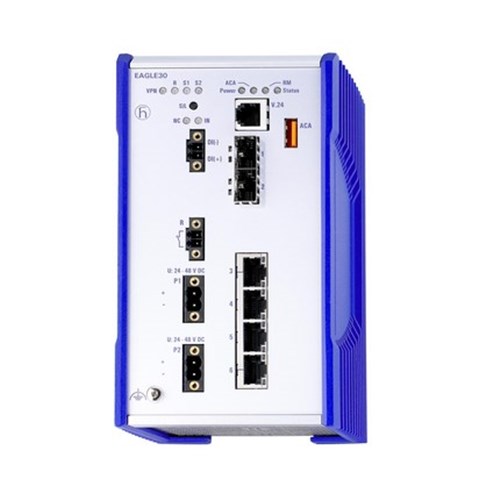

Hirschmann 942 058-999-004 Firewall & Security Router 4 x FE Ports -Port 230VAC 60 deg C
