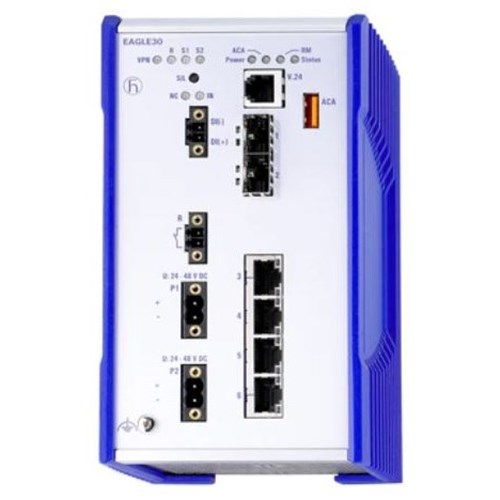

Product Code: 942 058-999-002

Industrial router, DIN rail mount
Supports 24/36/48 VDC inputs
IP20 protection rating
Operates from 0 to 60°C
Includes Layer 3 firewall software

Specifications

General

Product Type

Firewall

Brand

Hirschmann

Series

EAGLE30

Electrical

Connectors

6 ports in total; Ethernet Ports: 2 x SFP slots (100/1000 Mbit/s); 4 x 10/100BASE TX / RJ45

Rated Voltage (Ur)

24 VDC, 36 VDC, 48 VDC

Mechanical

Mounting

DIN Rail

Port Configuration

6 ports in total; Ethernet Ports: 2 x SFP slots (100/1000 Mbit/s); 4 x 10/100BASE TX / RJ45

Dimensions & Physical Data

Depth 120mm	Height 164mm	Weight 1.2kg
Width 90mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

0°C to 60°C

IP Rating

IP20

Communication & Control

USB Port

1 x USB to connect auto-configuration adapter ACA22-USB

Safety, Standards & Compliance

Standards and Approvals

CE; FCC; EN 61131; EN 60950 IEC 61850-3; IEEE 1613

Accessories & Additional Information

Development Software

L3 Firewall Software

Hirschmann 942 058-999-002 Firewall & Security Router 4xFE (10/100 Mbps) Type Uplink
