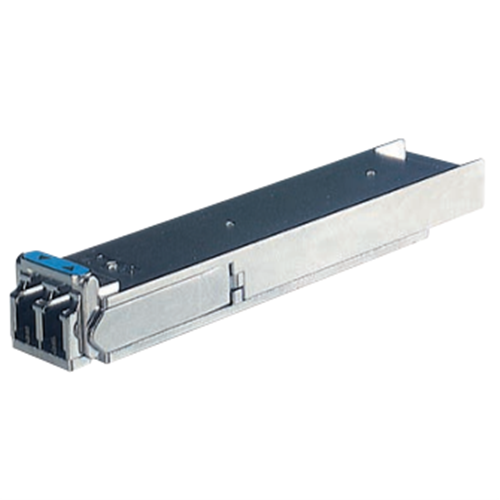

Hirschmann 942 056-001 Ethernet XFP and SFP Transceiver 1 x 10000 Mbps W/LC connector -Port

Product Code: 942 056-001

  • Fits XFP slot, IP20 protection
  • Operates from -40 to 85°C
  • Supports 9/125 um single mode fibre
  • (1) Port at 10000 Mbps with LC connector
  • Cable range of 10-40 km
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Transceiver
Brand
Hirschmann

Electrical

Rated Power
3W
Rated Voltage (Ur)
power supply via the switch

Mechanical

Diagnostic Functions
Optical input and output power, transceiver temperature
Mounting
XFP slot

Dimensions & Physical Data

Depth
78mm
Height
14mm
Weight
0.07kg
Width
23mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 85°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
EN 60950
