Specifications

Product Type

Managed DIN Rail Switch

Brand

Hirschmann

Series

RSP

Input Voltage

1 x 60 - 250 VDC (48V - 320 VDC) and 110 - 230 VAC (88 - 265 VAC)

Mounting

DIN rail

Depth 120mm	Height 164mm	Weight 1.2kg
Width 90mm

Operating Temperature

0°C to 60°C

IP Rating

IP20

Connectors/Input/Output 8 x 10/100BASE TX / RJ45; 3 x SFP slot FE (100 Mbit/s)	Total Ports 11	Fiber Connector Type SFP
Traffic Management CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports, IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Jumbo Frames, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, Unknown Multicast Filtering, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN	Network Management Dual Software Image Support, TFTP, SFTP. SCP. LLDP (802.1AB), LLDP-MED, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet

Standards and Approvals

CE, FCC, EN 61131 IEC 61850-3, IEEE 1613

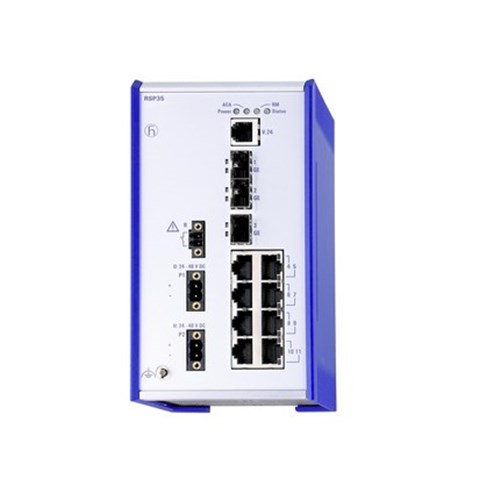

Hirschmann 942 053-999-025 Managed DIN Rail Switch
