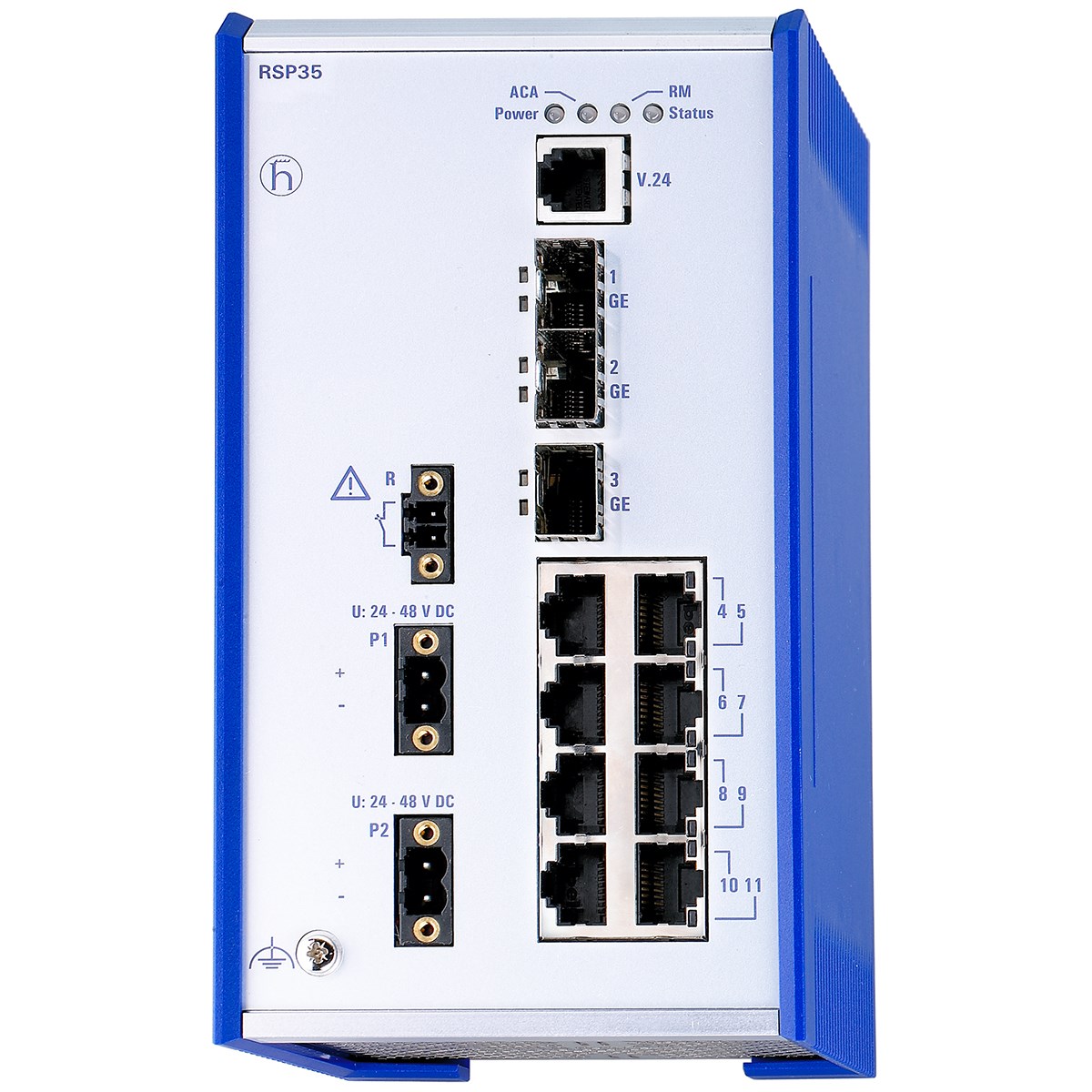

Hirschmann 942 053-999-021 Managed DIN Rail Switch

Product Code: 942 053-999-021

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
Hirschmann
Series
RSP

Electrical

Input Voltage
2 x 24/36/48 VDC (18 -60 VDC)

Mechanical

Mounting
DIN rail

Dimensions & Physical Data

Depth
120mm
Height
164mm
Weight
1.2kg
Width
90mm

Environmental

Operating Temperature
0°C to 60°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
8 x 10/100BASE TX / RJ45; 3 x SFP slot FE (100 Mbit/s)
Total Ports
11
Fiber Connector Type
SFP
Traffic Management
CoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports, IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Jumbo Frames, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, Unknown Multicast Filtering, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN
Network Management
Dual Software Image Support, TFTP, SFTP. SCP. LLDP (802.1AB), LLDP-MED, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN 61131 IEC 61850-3, IEEE 1613
