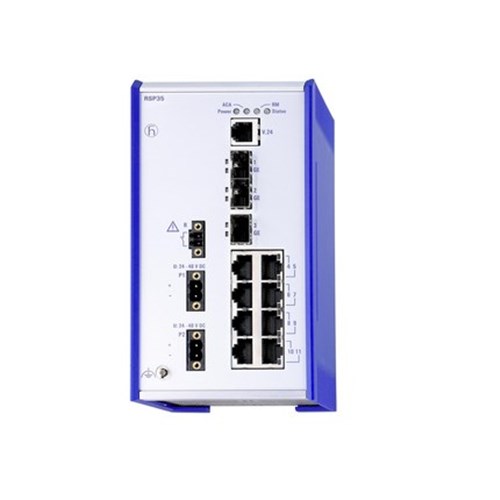

Hirschmann 942 053-016 Managed Industrial DIN Rail Switch 265VAC

Managed DIN Rail Switch

Hirschmann

RSP (RSP35)

1 x 60 - 250 VDC (48V - 320 VDC) and 110 - 230 VAC (88 - 265 VAC)

22W

11

HSR 1 GBit/s, Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Client, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Manager, PRP 1 GBit/s, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards, Fast MRP (IEC62439-2), High Availability Seamless Redundancy Protocol (HSR) (IEC62439-3) - HSR-PRP RedBox, High Availability Seamless Redundancy Protocol (HSR) (IEC62439-3) - SAN RedBox, Parallel Redundancy Protocol (PRP) (IEC62439-3) - SAN RedBox

Auto Disable, AutoConfiguration Adapter ACA31 (SD card), Automatic Configuration Undo (roll-back), Backup config on a remote server when saving, BOOTP/DHCP Client with Auto-Configuration, Clear config but keep IP settings, CLI script handling over ENVM at boot, CLI Scripting, Command Line Interface (CLI), Configuration Fingerprint, Context-sensitive Help, DHCP Relay with Option 82, DHCP Server: per Port, DHCP Server: Pools per VLAN, Full-featured MIB Support, HiDiscovery, HTML5 based Management, Web-based Management, XML-based Configuration File

1 x RJ11 socket

1 x plug-in terminal block, 3-pin; 1 x plug-in terminal block, 2-pin (power supply/signaling contact)

1 x plug-in terminal block, 3-pin; 1 x plug-in terminal block, 2-pin (power supply/signaling contact)

RJ45, SFP slots, RJ11 (V.24), SD card slot, plug-in terminal blocks

Twisted pair (TP); single mode / multimode fiber via SFP modules

Twisted pair (TP); single mode / multimode fiber via SFP modules

Configuration Check Dialog, Copper Cable Test, Device Status Indication, Duplex Mismatch Detection, LEDs, Link Flap Detection, Link Speed and Duplex Monitoring, MAC Notification, Management Address Conflict Detection, Overload Detection, Persistent Logging on ACA, Port Mirroring 1:1, Port Mirroring 8:1, Port Mirroring N:1, Port Monitoring with Auto-Disable, RMON (1,2,3,9), Self-Tests on Cold Start, SFP Management, Signal Contact, Snapshot Configuration Feature, Switch Dump, Syslog, System Information, TCPDump

EtherNet/IP Protocol, IEC61850 Protocol (MMS Server, Switch Model), Modbus TCP, PROFINET Protocol

RSP35-08033O6ZT-SK9V9HPE2S

DIN rail

10/100BASE TX / RJ45; SFP slot (100/1000 Mbit/s); SFP slot (100 Mbit/s)

1 x SD card slot to connect the auto configuration adapter ACA31

VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN, IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Multiple VLAN Registration Protocol (MVRP)

120mm

164mm

1.3kg

90mm

Twisted pair (TP): 0-100; SM/LH/MM fiber: see SFP fiber module M-SFP-xx / M-Fast SFP-xx

Twisted pair (TP): 0-100; SM/LH/MM fiber: see SFP fiber module M-SFP-xx / M-Fast SFP-xx

-40°C to 70°C

0°C to 60°C

IP20

11

Basis Standard: CE, FCC, EN 61131; Substation: IEC 61850-3, IEEE 1613; Industrial Security: IEC 62443-4-2 Security Level 1

Basic ACL, Access to Management restricted by VLAN, Appropriate Use Banner, Audit Trail, CLI Logging, Configurable Number of Login Attempts, Configurable Password Policy, Denial-of-Service Prevention, Device Security Indication, Guest/unauthenticated VLAN, HTTPS Certificate Management, Ingress VLAN-based ACL, Integrated Authentication Server (IAS), Local User Management, MAC-based Port Security, Multiple Privilege Levels, Password change on first login, Port-based Access Control with 802.1X, RADIUS Client, RADIUS VLAN Assignment, Remote Authentication via RADIUS, Restricted Management Access, Signed Firmware Images, SNMP Logging, User Account Locking, VLAN-based ACL
