Specifications

Product Type

Managed Industrial DIN Rail Switch

Brand

Hirschmann

Series

RSP

Input Voltage

2 x 24/36/48 VDC (18 -60 VDC)

Mounting

DIN rail

Depth 120mm	Height 164mm	Weight 1.3kg
Width 90mm

Operating Temperature

0°C to 60°C

IP Rating

IP20

Connectors/Input/Output 3 x SFP slots (100/1000 Mbit/s); 4 x 10/100BASE TX / RJ45; 4 x SFP slots (100 Mbit/s)	Total Ports 11	Fiber Connector Type SFP
Traffic Management Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Interface Trust Mode, CoS Queue Management, Queue-Shaping / Max. Queue Bandwidth, Flow Control (802.3X), Egress Interface Shaping, Ingress Storm Protection, Jumbo Frames, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN, IGMP Snooping/Querier per VLAN (v1/v2/v3), Unknown Multicast Filtering, Multiple VLAN Registration Protocol (MVRP), Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP)	Network Management Dual Software Image Support, TFTP, SFTP. SCP. LLDP (802.1AB), LLDP-MED, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet

Standards and Approvals

CE, FCC, EN 61131 IEC 61850-3, IEEE 1613

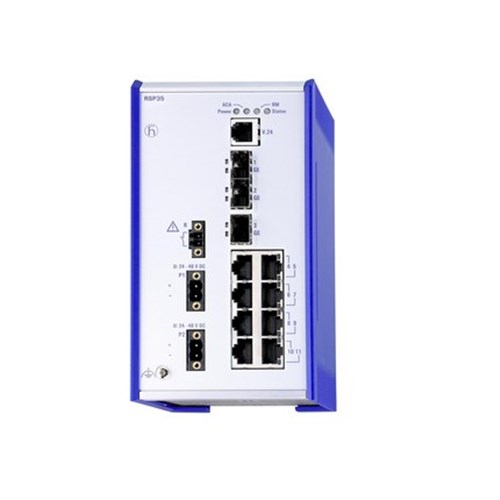

Hirschmann 942 053-013 Managed Industrial DIN Rail Switch 60VDC
