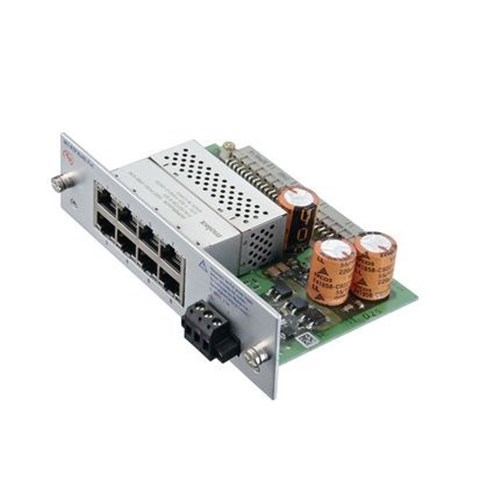

Hirschmann 942 028-001 Ethernet Switch 8 x 10/100 Base-TX PoE+ RJ45

Product Code: 942 028-001

  • Compact design: 138x90x42 mm
  • 8 x 10/100 Base-TX PoE+ ports
  • Rated power of 2.2 W
  • IP20 protection rating
  • Operates in 0 to 50°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Media Module
Brand
Hirschmann

Electrical

Rated Power
2.2 W (plus up to 120 W PoE per external power supply)

Mechanical

Mounting Type
Media Module

Dimensions & Physical Data

Depth
42mm
Height
90 mm
Width
138 mm

Environmental

Storage Temperature
-20-+85 °C
Operating Temperature
0-50 °C

Communication & Control

Connectors/Input/Output
8 x 10/100BaseTX PoE+ RJ45 port

Safety, Standards & Compliance

Standards and Approvals
EN 55022 Class A FCC 47CFR Part 15, Class A

Documents

IPD Product Catalogue V17
