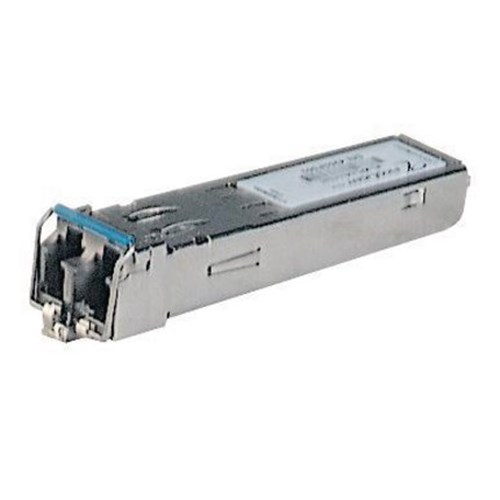

Hirschmann 942 023-001 SFP Fiber Optic Ethernet Transceiver 1 x 1000 Mbps W/LC connector -Port

Product Code: 942 023-001

  • Compact design, 13.4 mm width
  • Fits in SFP slot for easy installation
  • Supports 9/125 um single mode fibre
  • Operates at 0 to 60°C, IP20 rated
  • Up to 42 km cable length with LC connector
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Transceiver
Brand
Hirschmann

Electrical

Rated Power
1W
Rated Voltage (Ur)
power supply via the switch

Mechanical

Diagnostic Functions
Optical input and output power, transceiver temperature
Mounting
SFP slot

Dimensions & Physical Data

Depth
56.5mm
Height
8.5mm
Weight
0.03kg
Width
13.4mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
0°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
EN 60950
