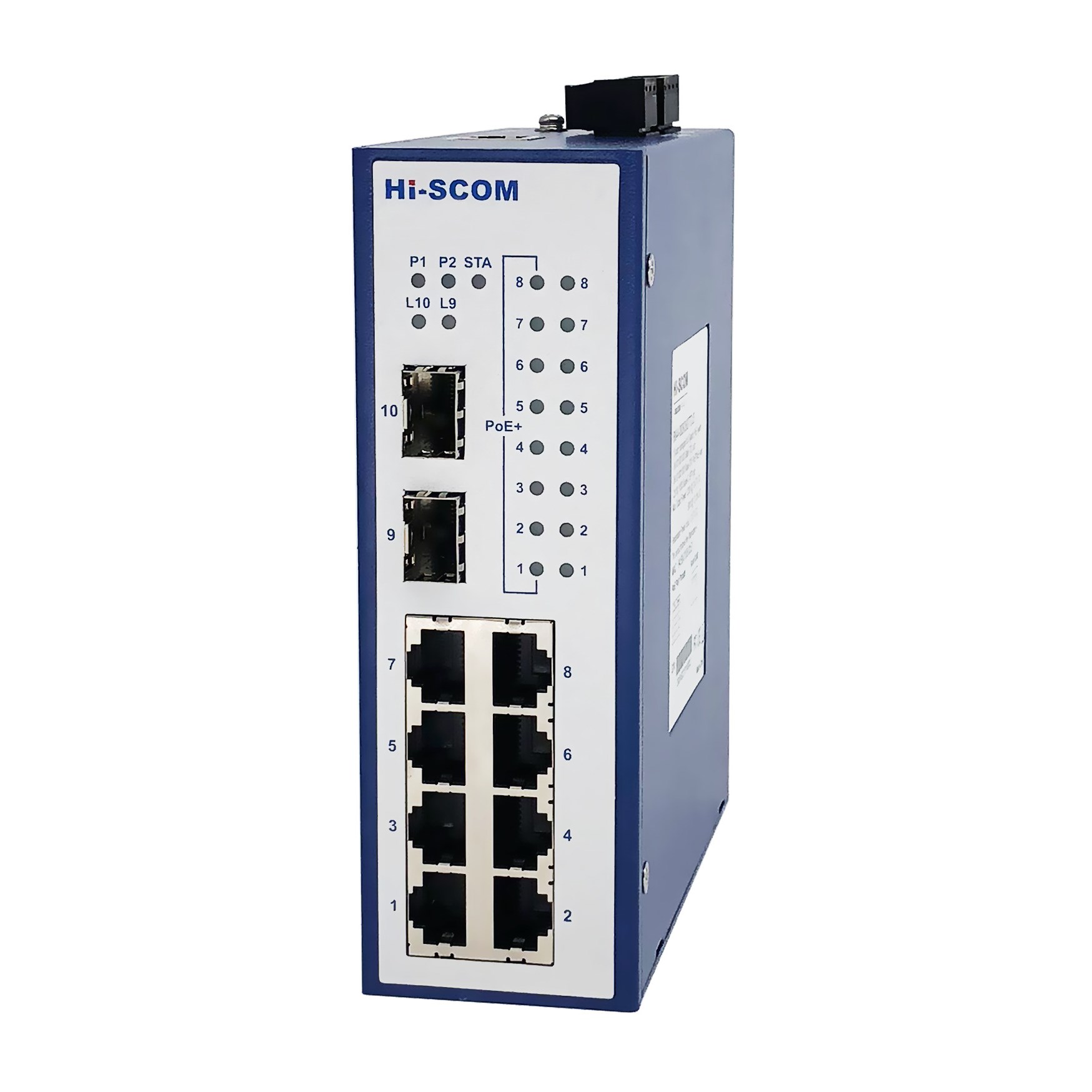

Hi-SCOM 942 999 938 Ethernet Switch 48VDC

Product Code: 942 999 938

  • Managed switch for precise control
  • 48 VDC rated voltage
  • Compact DIN rail mounting
  • IP30 protection rating
  • Operates from -40 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch
Brand
Hi-scom
Series
BN3049

Electrical

Input Voltage
48VDC
Redundancy
STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s), ERPS (G.8032), Link Aggregation Static, LACP

Mechanical

Mounting
DIN Rail

Dimensions & Physical Data

Depth
130 mm
Height
144 mm
Width
64 mm

Environmental

Operating Temperature
-40°C — +70°C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
8 x 10/100/1000 BASE-TX, RJ45 PoE+ ports; 2 x Gigabit SFP slots
Total Ports
8
Traffic Management
QoS (4 classes), CoS, TOS/DSCP, port priority (IEEE 802.1Dip), VLAN (IEEE 802.1Q), IGMP snooping, MLD Snooping, Storm Control
Network Management
Serial interface, Web-interface, HTTP/HTTPS, Telnet, SSH, SNMPv1/v2/v3, Traps, LLDP,LLDP-MED
