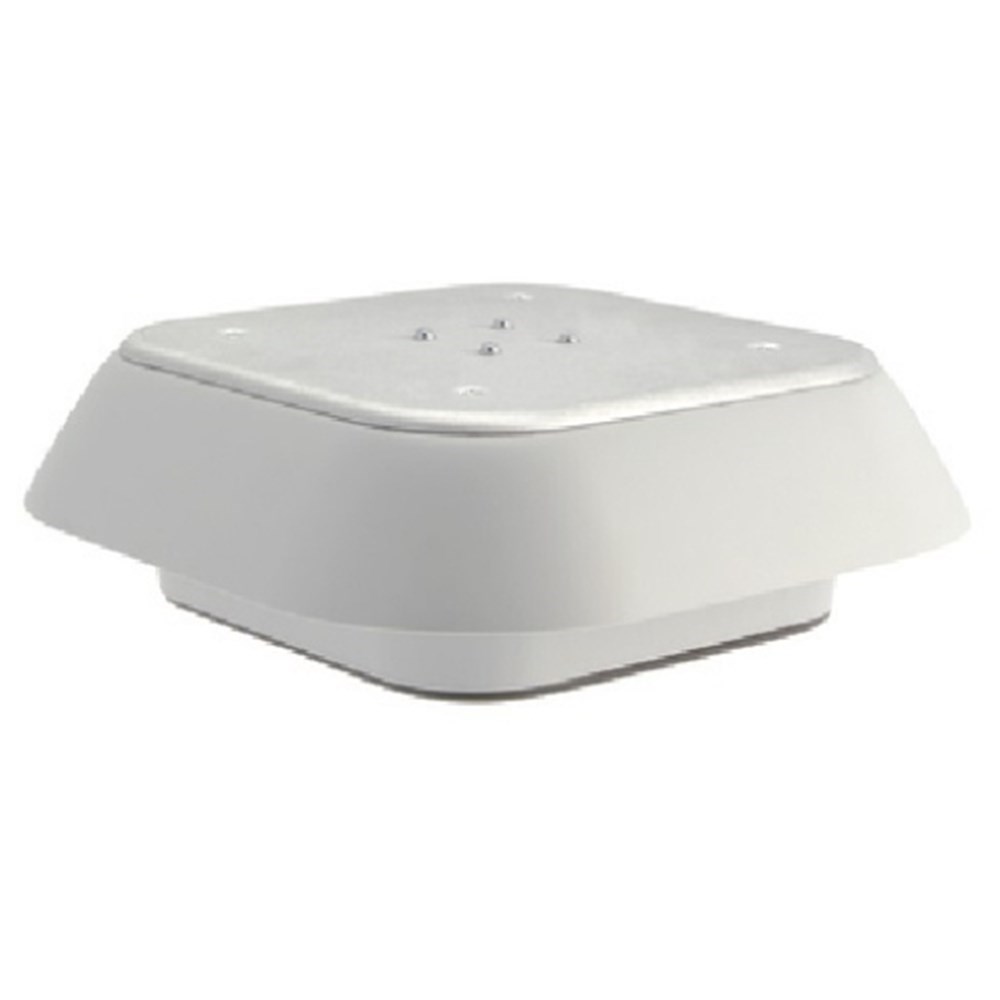

Fandis TP19U230B Roof Exhaust Unit 505cu-m/h 553cu-m/h 230VAC 24 to 250VDC IP24 324W 324H RAL7035 Light Grey

Product Code: TP19U230B

  • Efficient airflow of up to 553 cu-m/h
  • Dual power options: 69 W & 83 W
  • Operates on both AC & DC voltage
  • Compact design: 324x324x94 mm
  • IP24 protection against water splashes
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Exhaust unit
Brand
Fandis
Series
TP

Electrical

Rated Current
0.30/0.37 A
Rated Frequency
50/60 Hz
Rated Power
69/88 W
Rated Voltage
230 V AC

Mechanical

Cable Cross Section
16-12 AWG
Colour
RAL 7035
Max. Airflow
505/553 m³/h297/325 CFM

Dimensions & Physical Data

Depth
94 mm
Height
324 mm
Width
324 mm

Environmental

Noise (dB)
67.9/71 dB(A)
Operating Temperature
-10 - 60 °C
IP Rating
IP24

Safety, Standards & Compliance

Standards and Approvals
CE; UKCA

Documents

IPD Product Catalogue V17
