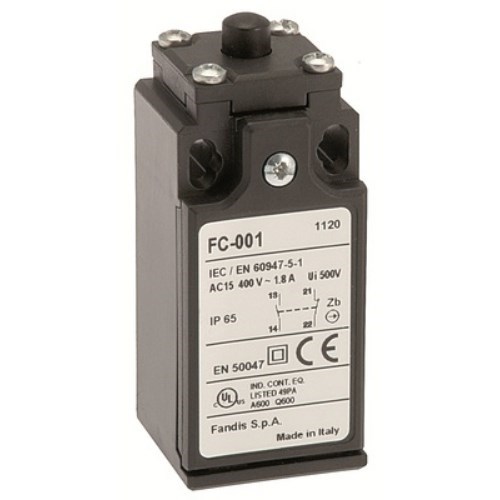

Fandis FC001 Limit Switch 24 to 400VAC 24 to 250VDC IP66

Product Code: FC001

  • Versatile voltage range: 24-400 VAC, 24-250 VDC
  • Robust current handling: up to 10 A
  • High protection rating: IP66
  • Wide temp range: -25 to 70°C
  • Certified safety: CE, cULus, UKCA approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Limit Switch
Brand
Fandis
Series
FC

Electrical

Rated Current
4-10 A (AC)0.4-6 A (DC)
Rated Voltage
24-250 VDC24-400 VAC

Dimensions & Physical Data

Depth
30 mm
Height
30.3 mm
Width
73 mm

Environmental

Operating Temperature
-25 - 70 °C

Safety, Standards & Compliance

Standards and Approvals
CE; cULus; UKCA

Documents

IPD Product Catalogue V17
