Product Code: UIPCA21E2HW0A

ARM Cortex-A53 CPU with 2 GB RAM
Dual 10/100/1000 Base-T Ethernet ports
Includes RS-232 serial port
Operates on 10-30 VDC power
DIN Rail mounting for easy installation

Specifications

General

Product Type

Industrial Comp[uter

Brand

Emerson

Series

PACSystems IPC

Electrical

Power Consumption 11 WPower Supply: 25 W	Supply Voltage 12 V – 30 V DC	Memory Capacity 2GB DRR4 with ECC
Processor Type ARM Cortex-A53 CPU	Operating System Microsoft® Windows® 10 IoT 2019 LTSC Linux® Kernel 4.9 (not pre-loaded) VxWorks® 7.0 (not pre-loaded) Movicon.NExT 4.1 and above (pre-loaded options available) Pro.Lean™ (pre-loaded options available)	Hard Drive Capacity 65 GB eMMC

Mechanical

Housing Material

Rugged aluminum and stainless-steel

Mounting Method

DIN Rail/ Panel Mounting

Dimensions & Physical Data

Depth

101 mm

Height

120 mm

Width

45 mm

Environmental

Storage Temperature

-40°C up to +85°C

Operating Temperature

-20°C up to +70°C

IP Rating

IP22

Communication & Control

Ethernet Port Speed 10/100/1000 Mbps	Ethernet Ports 2x 10/100/1000BASE-T	Serial Ports RS-232
USB Port 2 x USB 2.0	Wifi No

Safety, Standards & Compliance

Compliance Standards

IEC/UL62368, CE, FCC

Hazardous Location Ratings

EMC Directive 2014/30/EUEN 61000-6-4 Emission standard for industrial environmentsEN 61000-6-2 Immunity standard for industrial environmentsFCC Part 15 BThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not causeharmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.CAN ICES-3 (A)/NMB-3(A)

Accessories & Additional Information

Development Software

PACEdge

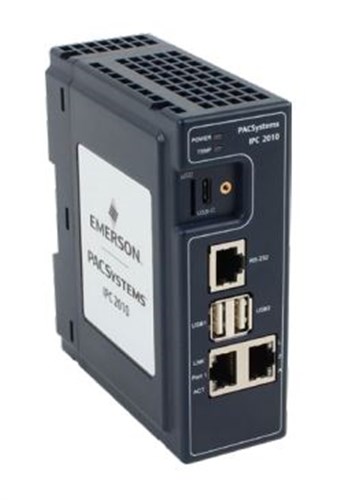

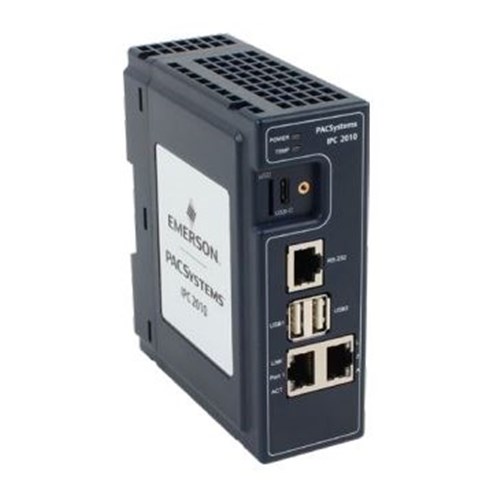

Emerson UIPCA21E2HW0A Industrial PC ARM Cortex-A53 CPU
