Product Code: UIPCA21E2HC0A

ARM Cortex-A53 CPU for efficient processing
1 GB RAM supports smooth operations
Dual Ethernet ports for reliable connectivity
DIN Rail mounting for easy installation
Wide temp range: -20 to 69°C

Specifications

General

Product Type

Industrial Comp[uter

Brand

Emerson

Series

PACSystems IPC

Electrical

Supply Voltage 10 V – 30 V DC	Memory Capacity 2GB DRR4 with ECC	Processor Type 2-Core ARM A53 CPU
Operating System Microsoft® Windows® 10 IoT 2019 LTSC Linux® Kernel 4.9 (not pre-loaded) VxWorks® 7.0 (not pre-loaded) Movicon.NExT 4.1 and above (pre-loaded options available) Pro.Lean™ (pre-loaded options available)	Hard Drive Capacity 64 GB eMMC

Mechanical

Housing Material

Rugged aluminum and stainless-steel

Mounting Method

DIN Rail/ Panel Mounting

Dimensions & Physical Data

Depth

101 mm

Height

120 mm

Width

45 mm

Environmental

Storage Temperature

-40°C up to +85°C

Operating Temperature

-20°C up to +70°C

IP Rating

IP20

Communication & Control

Ethernet Port Speed 10/100/1000 Mbps	Ethernet Ports 2x 10/100/1000BASE-T	Serial Ports RS-232
USB Port 2 x USB 2.0	Wifi No

Safety, Standards & Compliance

Compliance Standards

IEC/UL62368, CE, FCC

Accessories & Additional Information

Development Software

PACEdge, Movicon Connext

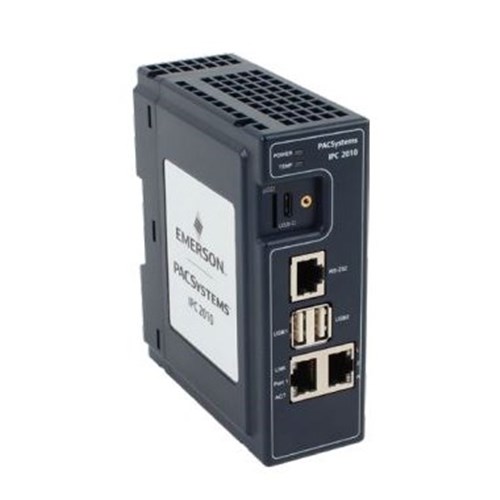

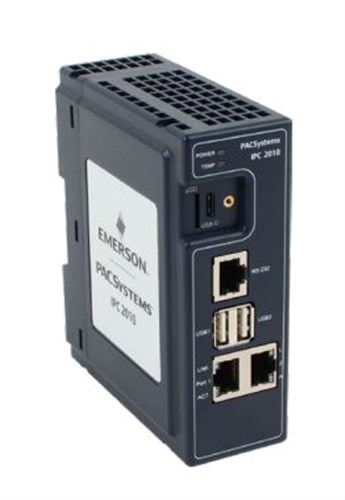

Emerson UIPCA21E2HC0A Industrial PC ARM Cortex-A53 CPU
