Product Code: R2X1N1O1A1T0F

4 GB RAM & 128 GB SSD for efficient performance
Intel Celeron G3902E CPU at 1.6 GHz
5 Ethernet ports, incl. remote management
Dual RS-232 serial interfaces
Operates in extreme temps: -40 to 70°C

Specifications

General

Product Type

Industrial Comp[uter

Brand

Emerson

Series

PACSystems RXi2-XP

Electrical

Power Consumption 25W	Supply Voltage 24V DC (±25%) with surge protection	Memory Capacity 4GB
Processor Type Intel Celeron G3902E 1.6 GHz	Operating System Microsoft® Windows® 10 IoT 2019 LTSC Linux® Kernel 4.9 (not pre-loaded) VxWorks® 7.0 (not pre-loaded) Movicon.NExT 4.1 and above (pre-loaded options available) Pro.Lean™ (pre-loaded options available)	Hard Drive Capacity 128 GB SSD M.2

Mechanical

Housing Material

Rugged aluminum and stainless-steel

Mounting Method

Panel Mounting

Dimensions & Physical Data

Depth

132 mm

Height

252 mm

Width

203 mm

Environmental

Storage Temperature

-40°C up to +85°C

Operating Temperature

0°C up to 60°C

IP Rating

IP20

Communication & Control

Ethernet Port Speed 1 Gbps	Ethernet Ports 5x Gigabit Ethernet	Serial Ports 2 x RS-232, 2 xRS-422/RS-485
USB Port 4x USB 3.1 , 2x USB 2.5	Wifi No

Safety, Standards & Compliance

Compliance Standards

UL1950, CE class A, FCC-A

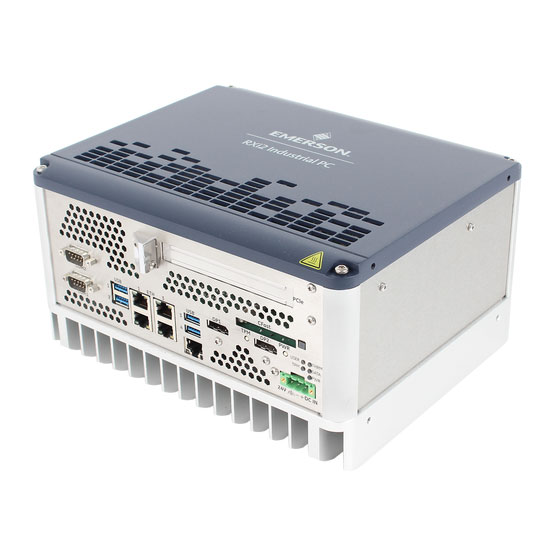

Emerson R2X1N1O1A1T0F Industrial PC Intel Celeron G3902E 1.6 GHz 128 GB SSD

Product Code: R2X1N1O1A1T0F
