Product Code: R2U2N1J1B2T0A

8 GB RAM for efficient multitasking
2.9 GHz Quad Core xEON E3 processor
4 x 1-Gigabit Ethernet ports, RJ-45
Remote management via additional Ethernet port
Multiple serial interfaces: (2) RS-232, (5) RJ-45

Specifications

General

Product Type

Industrial Comp[uter

Brand

Emerson

Series

PACSystems RXi2-UP

Electrical

Power Consumption 45W	Supply Voltage 24V DC (±25%) with surge protection	Memory Capacity 8GB RAM ECC
Processor Type Intel E3-1501Mv6 2.9GHz	Operating System Microsoft® Windows® 10 IoT 2019 LTSC Linux® Kernel 4.9 (not pre-loaded) VxWorks® 7.0 (not pre-loaded) Movicon.NExT 4.1 and above (pre-loaded options available) Pro.Lean™ (pre-loaded options available)	Hard Drive Capacity 256 GB SSD M.2

Mechanical

Housing Material

Rugged aluminum and stainless-steel

Mounting Method

Panel Mounting

Dimensions & Physical Data

Depth

108.5 mm

Height

252 mm

Width

203 mm

Environmental

Storage Temperature

-40°C up to +85°C

Operating Temperature

0°C up to 60°C

IP Rating

IP20

Communication & Control

Ethernet Port Speed 1 Gbps	Ethernet Ports 5x Gigabit Ethernet	Expandable Communications Yes
Serial Ports 2 x RS-232, 2 xRS-422/RS-485	USB Port 4x USB 3.1 , 2x USB 2.4	Wifi No

Safety, Standards & Compliance

Compliance Standards

IEC/UL62368, CE, FCC

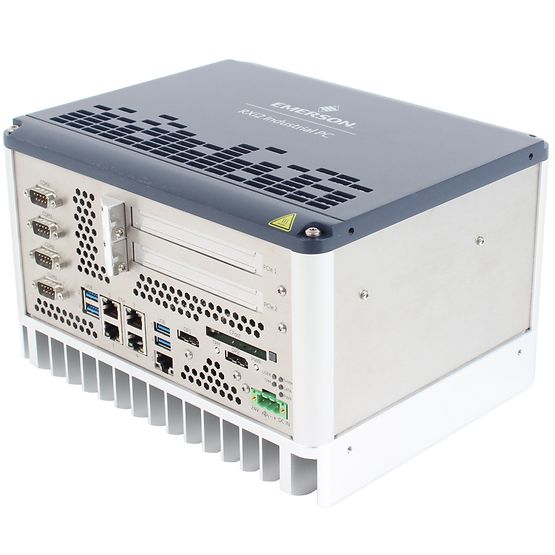

Emerson R2U2N1J1B2T0A Industrial PC 2.9 GHz Quad Core xEON E3-1501M
