Product Code: R2U2N1D3B1T1F

32 GB RAM for high performance
256 GB SSD for fast data access
Intel E3 CPU ensures reliable processing
5 Gigabit Ethernet ports with Time SYNC
Wide operating temp range: -40 to 70°C

Specifications

General

Product Type

Industrial Comp[uter

Brand

Emerson

Series

PACSystems RXi2-UP

Electrical

Power Consumption 45/35W	Supply Voltage 24V DC (±25%) with surge protection	Memory Capacity 32GB
Processor Type Intel E3-1505MV6	Operating System Microsoft® Windows® 10 IoT 2019 LTSC Linux® Kernel 4.9 (not pre-loaded) VxWorks® 7.0 (not pre-loaded) Movicon.NExT 4.1 and above (pre-loaded options available) Pro.Lean™ (pre-loaded options available)	Hard Drive Capacity 256 GB SSD M.2

Mechanical

Housing Material

Rugged aluminum and stainless-steel

Mounting Method

Panel Mounting

Dimensions & Physical Data

Depth

108.5 mm

Height

252 mm

Width

203 mm

Environmental

Storage Temperature

-40°C up to +85°C

Operating Temperature

-40°C up to +70°C

IP Rating

IP20

Communication & Control

Ethernet Port Speed 1 Gbps	Ethernet Ports 5x Gigabit Ethernet	Expandable Communications Yes
Serial Ports 2 x RS-232, 2 xRS-422/RS-485	USB Port 4x USB 3.1 , 2x USB 2.3	Wifi No

Safety, Standards & Compliance

Compliance Standards

IEC/UL62368, CE, FCC

Accessories & Additional Information

Development Software

Movicon.Next, Alarm Dispatcher, Web Client, PRO.LEAN

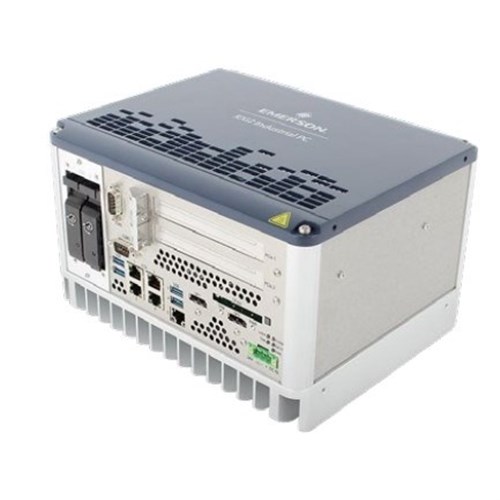

Emerson R2U2N1D3B1T1F Industrial PC INTEL E3-1505Mv6 256 GB SSD
