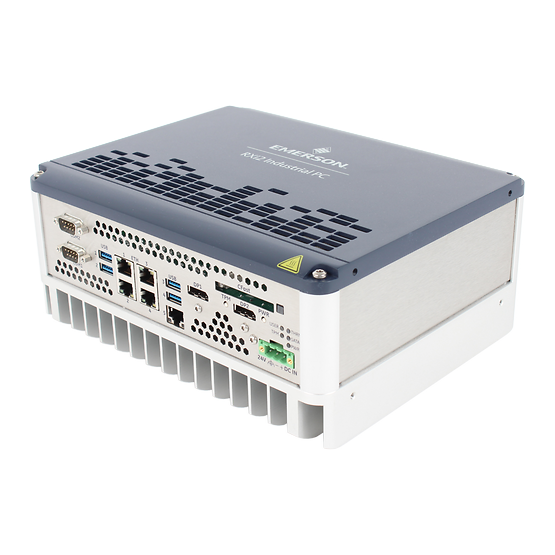

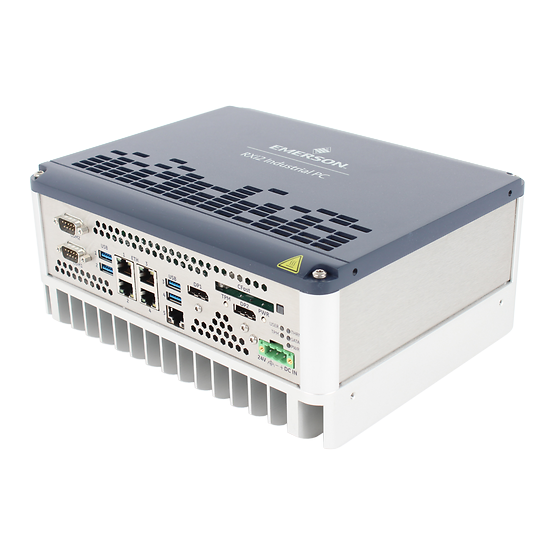

RXI2-UP INDUSTRIAL PC 0s,i5,8GB,128GB,Win10,C EMERSON

Product Code: R2U0N1E1A1T0A

  • 8 GB RAM & 128 GB SSD for efficient performance
  • Intel i5-7442EQ CPU at 2.1 GHz
  • Five Ethernet ports, including remote management
  • Dual RS-232 serial interfaces
  • Windows 10 IoT pre-installed
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Pc
Brand
Emerson
Series
PACSystems RXi2-UP

Electrical

Power Consumption
25W
Supply Voltage
24V DC (±25%)
Memory Capacity
8GB RAM
Processor Type
Intel i5-7442EQ 2.1GHz 4 Cores/4 Threads
Operating System
Microsoft® Windows® 10 IoT 2019 LTSC Linux® Kernel 4.9 (not pre-loaded) VxWorks® 7.0 (not pre-loaded) Movicon.NExT 4.1 and above (pre-loaded options available) Pro.Lean™ (pre-loaded options available)
Hard Drive Capacity
128 GB SSD M.2

Mechanical

Housing Material
Rugged aluminum and stainless steel

Dimensions & Physical Data

Depth
108.5mm
Height
252mm
Width
203mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
0°C to 60°C
IP Rating
IP20

Communication & Control

Ethernet Port Speed
1000 Mbit/s
Ethernet Ports
5
Expandable Communications
Yes
Serial Ports
2
USB Port
6
Wifi
No

Safety, Standards & Compliance

Certifications / Approvals
IEC/UL 62368, CE, FCC

Documents

IPD Product Catalogue V17
