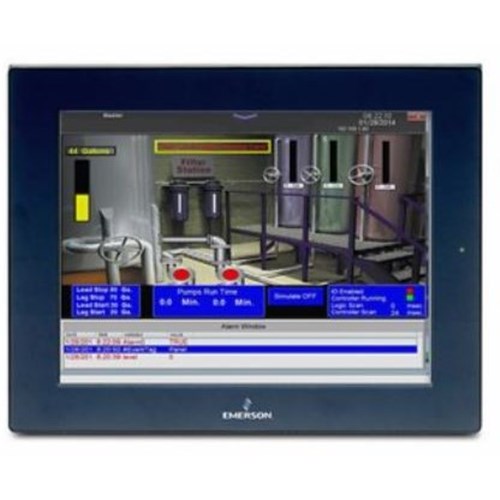

Emerson IC755CSS15CDA HMI Screen 15in 29VDC 2 Ethernet Ports 2 Serial Ports

Product Code: IC755CSS15CDA

  • 15" touch screen for clear display
  • IP65 rating ensures dust and water resistance
  • Operates at up to 55°C for tough environments
  • Runs on Windows Embedded Compact 7 OS
  • Equipped with Freescale i.Mx535 processor
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
HMI Screen
Brand
Emerson
Series
QuickPanel+

Electrical

Power Consumption
30 W
Supply Voltage
+12/24VDC
Sunlight Readable
Yes
Touch Type
Capcitive Touch
Memory Capacity
1 GB DDR3 SDRAM
Processor Type
MX535 1GHz based on ARM Cortex A12
Operating System
Microsoft® Windows® Embedded Compact 11
Hard Drive Capacity
512MB SLC NAND Flash 512KB Battery Backed SRAM

Mechanical

Mounting Method
Panel Cutout Dimensions: 379(W) x 305(H) mm Panel Mount Brackets Included Mounting Gasket VESA 100
Display Colour
Colour

Dimensions & Physical Data

Depth
65 mm
Height
323 mm
Width
399 mm
Panel Cut-Out Size
379(W) x 305(H) mm
Display Size
15 inch

Environmental

Storage Temperature
-10°C to +60°C
Operating Temperature
0°C to +55°C
IP Rating
IP65F

Communication & Control

Ethernet Port Speed
10 Mbps/100 Mbps
Ethernet Ports
2x 10Base-T (IEEE 802.3i)/ 100Base-TX (IEEE 802.3u)
Serial Ports
2xRS-232C/ RS-485C
USB Port
3

Safety, Standards & Compliance

Compliance Standards
CE (EN 60950-1, EN 61000-6-4, 61000-6-2) FCC Part15 Class A RoHS Marine*: ABS, BV, DNV GL UL Listed US/CAN
Hazardous Location Ratings
ATEX* Class 1 Division 2 UL TYPE 4X
