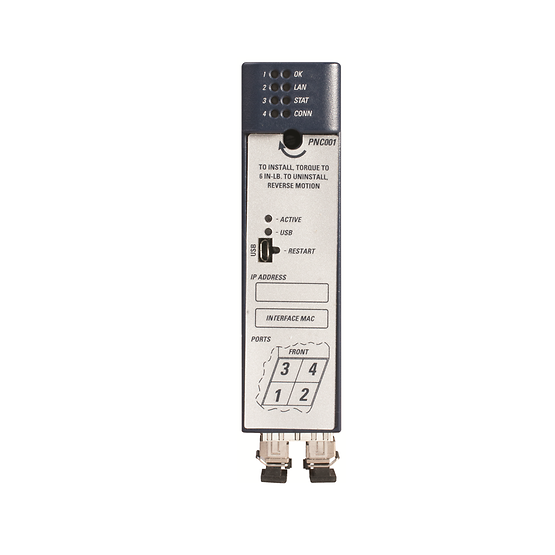

Emerson IC695PNC001CA Controller Module 5VDC

Product Code: IC695PNC001CA

  • Supports Profinet communication
  • Operates at 5 VDC
  • Mounts on panel or DIN rail
  • Handles up to 60°C temp
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Controller Module
Brand
Emerson
Series
Rx3i

Electrical

Power Consumption
3.96W 4.125W
Supply Voltage
3.3V DC 5V DC
Terminal Type
RJ-45, SFP

Mechanical

Housing Material
Metal

Environmental

Operating Temperature
0°C to 60°C
Conformal Coated
Yes

Communication & Control

Ethernet Port Speed
10/100/1000 Mbps Copper 100/1000 Mbps Multi-mode Fiber
Ethernet Ports
2
Fieldbus Interface
1
Serial Ports
0
USB Port
0
Supported Ethernet Protocols
Profinet

Safety, Standards & Compliance

Hazardous Location Ratings
Class I Div 2 Groups A, B, C and D, ATEX Zone 2 Group IIC
Certifications / Approvals
PROFINET certified, EU RoHS, EN 55011, FCC Class A

Accessories & Additional Information

Development Software
PAC Machine Edition

Documents

IPD Product Catalogue V17
