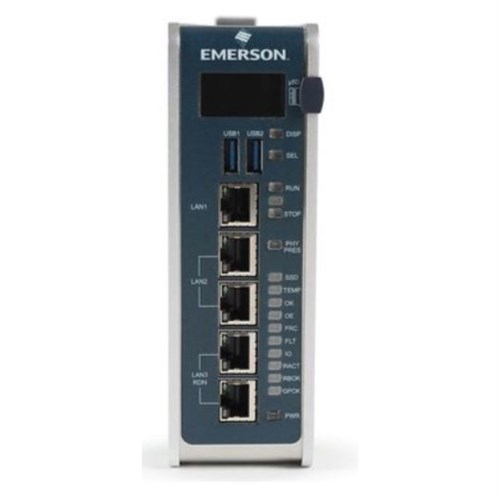

Emerson IC695CPL410 Controller

Product Code: IC695CPL410

  • Compact controller with OLED display
  • Single serial port for connectivity
  • Operates at up to 60°C
  • 20W rated power efficiency
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Controller
Brand
Emerson
Series
Rx3i

Electrical

Channel Isolation
Transformer
Digital Inputs
32k Bits Discrete I/O
Digital Outputs
32k Bits Discrete I/O
No. of Analog Inputs
32k Words for Analog I/O
No. of Analog Outputs
32k Words for Analog I/O
No. of Digital Inputs
32k Bits Discrete I/O
No. of Digital Outputs
32k Bits Discrete I/O
Analog Outputs
32k Words for Analog I/O
Power Consumption
20W
Supply Voltage
24V DC
Terminal Type
Screw Terminal
Analog Inputs
32k Words for Analog I/O

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
153.6mm
Height
203.5mm
Width
56.7mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 70°C
IP Rating
IP20
Conformal Coated
No

Communication & Control

Ethernet Port Speed
10/100/1000 Mbps
Ethernet Ports
3
Expandable Communications
Yes
Fieldbus Interface
3
Serial Ports
1
USB Port
2
Supported Ethernet Protocols
SRTP Client/Server Modbus TCP/IP OPC UA OPC UA (Non-Transparent Server Redundancy) EGD PROFINET DNP3 Outstation HART passthrough
Supported Serial Protocols
ASCII Serial

Safety, Standards & Compliance

Hazardous Location Ratings
UL HazLoc C1D2, ATEX Zone 2
Certifications / Approvals
UKCA, UL, cUL, RoHS, CCC, FCC, Reach

Accessories & Additional Information

Development Software
PACEdge

Documents

IPD Product Catalogue V17
