Specifications

Product Type

Controller

Brand

Emerson

Series

Rx3i

Channel Isolation Transformer	Digital Inputs 32k Bits Discrete I/O	Digital Outputs 32k Bits Discrete I/O
No. of Analog Inputs 32k Words for Analog I/O	No. of Analog Outputs 32k Words for Analog I/O	No. of Digital Inputs 32k Bits Discrete I/O
No. of Digital Outputs 32k Bits Discrete I/O	Analog Outputs 32k Words for Analog I/O	Power Consumption 18W (Power Supply)
Supply Voltage 24V DC	Terminal Type Screw Terminal	Analog Inputs 32k Words for Analog I/O

Housing Material

Plastic

Storage Temperature 0°C to 60°C	Operating Temperature -40°C to 60°C	IP Rating IP20
Conformal Coated No

Ethernet Port Speed 10/100/1000 Mbps	Ethernet Ports 2	Expandable Communications Yes
Fieldbus Interface 2	Serial Ports 0	USB Port 1
Supported Ethernet Protocols SRTP Client/Server Modbus TCP/IP OPC UA OPC UA (Non-Transparent Server Redundancy) EGD PROFINET DNP3 Outstation IEC-61850 Client IEC-104 Server** HART passthrough

Hazardous Location Ratings

UL UL HazLoc C1D2 CE ATEX Zone2

Certifications / Approvals

UKCA, UL, cUL, RoHS, CCC, FCC, Reach

Development Software

PACEdge

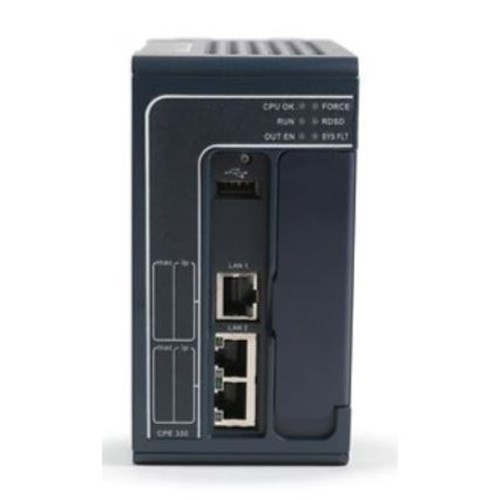

Emerson IC695CPK330 Controller
