Products

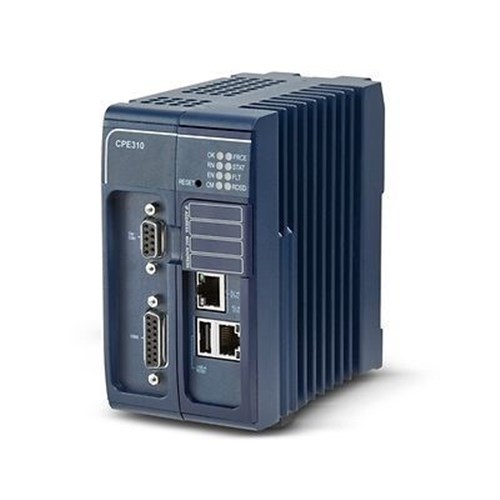

Emerson IC695CPE310CA Controller

Product Code: IC695CPE310CA

  • Supports Modbus, EtherNet/IP, ASCII, OPC UA
  • Features 2 serial ports for connectivity
  • Operates efficiently up to 60°C
  • IP20 protection rating ensures durability
  • Complies with ATEx and IECEx standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Controller
Brand
Emerson
Series
Rx3i

Electrical

Channel Isolation
Transformer
Digital Inputs
32k Bits Discrete I/O
Digital Outputs
32k Bits Discrete I/O
Analog Outputs
32k Words for Analog I/O
Power Consumption
2.4W (Power Supply) 3.3W (Backplane) 2.5W (Backplane)
Supply Voltage
3.3V DC/ 5V DC (Backplane) 24V DC (Relay)
Terminal Type
Screw Terminal
Analog Inputs
32k Words for Analog I/O

Mechanical

Housing Material
Plastic

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20
Conformal Coated
Yes

Communication & Control

Ethernet Port Speed
10 Mbps 100 Mbps 1000 Mbps
Ethernet Ports
1
Expandable Communications
Yes
Fieldbus Interface
PROFINET (requires additional module)
Serial Ports
2
USB Port
1
Supported Ethernet Protocols
SRTP Client/Server Modbus TCP/IP OPC UA EGD PROFINET** DNP3 Outstation** IEC-61850 Client** IEC-104 Server** HART passthrough
Supported Serial Protocols
ASCII Serial Modbus/RTU

Safety, Standards & Compliance

Hazardous Location Ratings
UL UL HazLoc C1D2 CE ATEX Zone2
Certifications / Approvals
UKCA, UL, cUL, RoHS, CCC, FCC, Reach

Accessories & Additional Information

Development Software
PACEdge

Documents

IPD Product Catalogue V17
