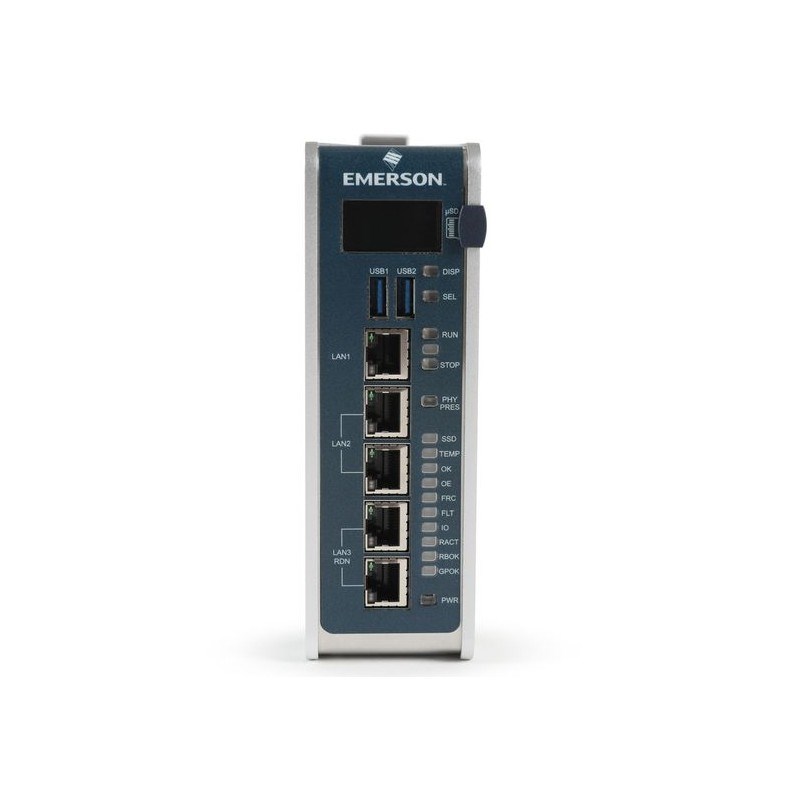

Emerson IC695CKL410 Edge Controller 18-30VDC

Product Code: IC695CKL410

  • Operates on 18-30 VDC
  • Compact 20 W power rating
  • Marine approved for reliability
  • Clear OLED display
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Edge Controller
Brand
Emerson
Series
Rx3i

Electrical

Digital Inputs
0
Digital Outputs
0
Analog Outputs
0
Power Consumption
20W
Supply Voltage
24V DC
Analog Inputs
0

Dimensions & Physical Data

Depth
153.6mm
Height
203.5mm
Width
56.7mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 70°C
IP Rating
IP20
Conformal Coated
No

Communication & Control

Ethernet Port Speed
10/100/1000 Mbps
Ethernet Ports
3
Expandable Communications
Yes
Fieldbus Interface
1
Serial Ports
1
USB Port
2
Supported Ethernet Protocols
SRTP Modbus TCP Ethernet Global Data (EGD) HART Passthrough PROFINET OPC-UA Server with secure access DNP3.0 Ethernet Outstation – L3
Supported Serial Protocols
ASCII Serial

Safety, Standards & Compliance

Hazardous Location Ratings
UL UL HazLoc C1D2 CE ATEX Zone2 ISA 12.12.01: 2015, Class I Div. 2 Groups ABCD CSA C22.2 No. 213-15 CAN/CSA-C22.2 NO. 60079-0:15, Class I, Zone 2 CAN/CSA-C22.2 NO. 60079-15:12
Certifications / Approvals
ABS, DNV-GL, BV, LR

Accessories & Additional Information

Development Software
PAC Machine Edition, PACEdge, WebHMI

Documents

IPD Product Catalogue V17
