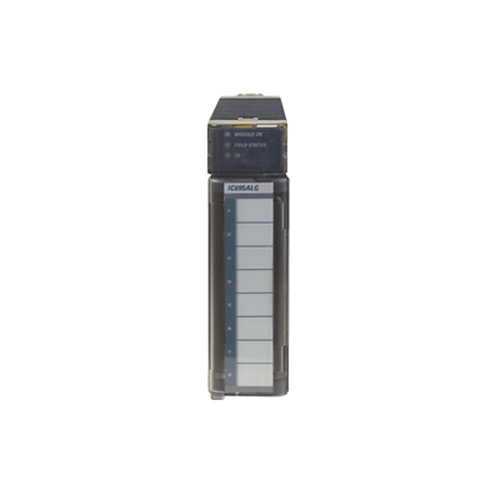

Emerson IC695ALG808CA Analog Output Module 10VDC 8 Analogue Outputs 8 Digital Inputs

Product Code: IC695ALG808CA

  • Supports Modbus, Profinet, Profibus protocols
  • Rated for 10 VDC and 0.02 A current
  • Fits panel or DIN rail mounting setups
  • Operates up to 60°C with IP20 protection
  • Complies with Zone 2 CE, ATEx C1D2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Output Module
Brand
Emerson
Series
Rx3i

Electrical

Analog Resolution
±10 Vdc: 15 bits, 0 to 10 Vdc: 14 bits, 0 to 20mA: 15 bits, 4 to 20mA: 15 bits
Channel Isolation
Isolated
Digital Inputs
0
Digital Outputs
0
Output Ratings
Current: 0 to 20mA, 4 to 20mA Voltage: ±10 Vdc, 0 to 10 Vdc
Analog Outputs
8 Ch
Output Type
Voltage/Current
Power Consumption
3.3 VDC: 1.485W 24 VDC: 14.4W
Supply Voltage
3.3V DC 5V DC 24V DC
Terminal Type
Screw Terminal
Analog Inputs
0

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20
Conformal Coated
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR UL HAZLOC
Certifications / Approvals
UL

Accessories & Additional Information

Development Software
PAC Machine Edition
