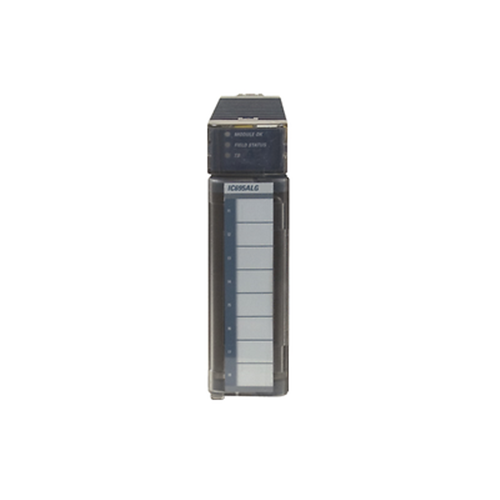

Emerson IC695ALG626CA Analog Input Module 10VDC

Product Code: IC695ALG626CA

  • Supports Modbus, Profinet, Profibus protocols
  • Operates at 10 VDC and 0.02 A
  • Mountable on panel or DIN rail
  • Works up to 60°C with IP20 protection
  • Complies with Zone 2 CE, ATEx C1D2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Input Module
Brand
Emerson
Series
Rx3i

Electrical

Analog Resolution
12 to 18 bit
Channel Isolation
Opto and Transformer
Digital Inputs
0
Digital Outputs
0
Analog Outputs
0
Input Ratings
Current: 0 to 20mA, 4 to 20mA, ±20mA Voltage: ±10 Vdc, 0 to 10 Vdc, ±5Vdc, 0 to 5Vdc, 1Vdc to 5Vdc
Input Type
Voltage/ Current
Power Consumption
3W
Supply Voltage
3.3V DC 5V DC
Terminal Type
Screw Terminal
Analog Inputs
16 Differential

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20
Conformal Coated
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR UL HAZLOC
Certifications / Approvals
UL

Accessories & Additional Information

Development Software
PAC Machine Edition
