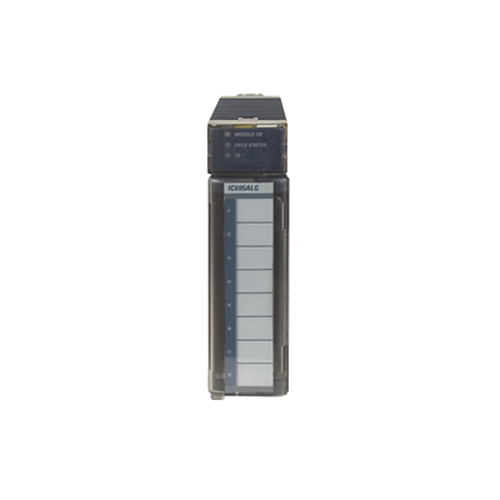

Emerson IC695ALG600CA Analog Input Module 10VDC

Product Code: IC695ALG600CA

  • Supports Modbus, Profinet, Profibus protocols
  • Operates at 10 VDC with 0.02 A current
  • Flexible mounting: Panel or DIN Rail
  • Max operating temp of 60°C
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Input Module
Brand
Emerson
Series
Rx3i

Electrical

Analog Resolution
11 to 16 bits
Channel Isolation
Opto and Transformer
Digital Inputs
0
Digital Outputs
0
Analog Outputs
0
Input Ratings
Thermocouple Inputs: B, C, E, J, K, N, R, S, T RTD Inputs: PT 385 / 3916, N 618 / 672, NiFe 518, CU 426 Resistance Inputs: 0 to 250 / 500 / 1000 / 2000 / 3000 / 4000 ohms Current: 0–20 mA, 4–20 mA, +20 mA Voltage: +50mV, +150 mV, 0–5 V, 1–5 V, 0–10 Vdc, +10 Vdc
Input Type
Voltage/ Current/ Thermocouple/ RTD/ Resistance/ CJC Sensor
Power Consumption
5.4W
Supply Voltage
3.3V DC 5V DC
Terminal Type
Screw Terminal
Analog Inputs
8

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20
Conformal Coated
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR UL HAZLOC
Certifications / Approvals
UL

Accessories & Additional Information

Development Software
PAC Machine Edition
