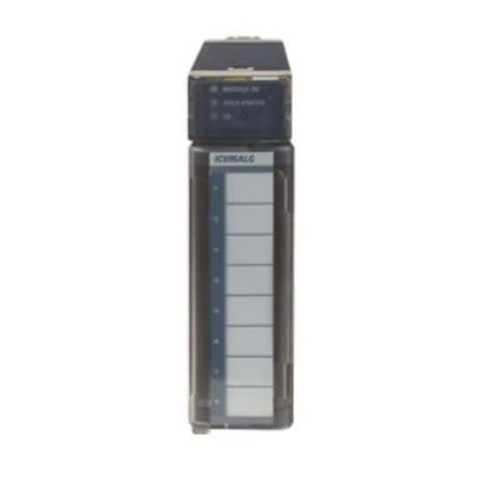

Emerson IC695ALG312 Analog Input Module 12 Digital Outputs

Product Code: IC695ALG312

  • Supports Modbus communication protocol
  • Easy DIN Rail mounting
  • Operates up to 60°C
  • IP20 protection rating
  • Certified for Zone 2 and ATEx C1D2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Input Module
Brand
Emerson
Series
Rx3i

Electrical

Analog Resolution
11.5–16 bits
Channel Isolation
Isolated
Digital Inputs
0
Digital Outputs
0
Analog Outputs
0
Input Ratings
±50mV and ±150mV Thermocouple Types: J, K, T, E, R, S, B, N and C
Input Type
Voltage/ Thermocouple
Power Consumption
2.125W
Supply Voltage
3.3V DC 5V DC
Terminal Type
Screw Terminal
Analog Inputs
12

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20
Conformal Coated
No

Safety, Standards & Compliance

Hazardous Location Ratings
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR UL HAZLOC
Certifications / Approvals
UL

Accessories & Additional Information

Development Software
PAC Machine Edition

Documents

IPD Product Catalogue V17
