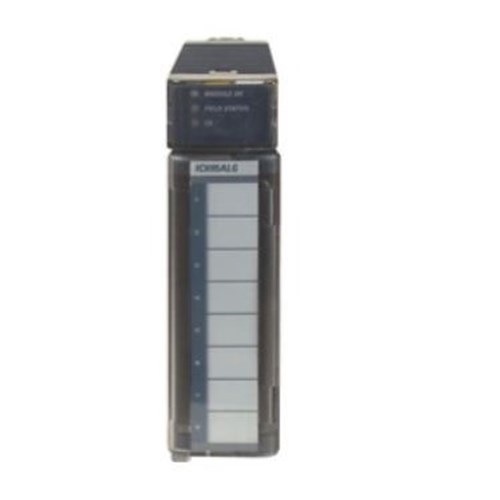

Emerson IC695ALG106 Analog Input Module 10VDC 6 Digital Outputs

Product Code: IC695ALG106

  • Supports Modbus, Profinet, Profibus
  • Versatile panel or DIN rail mounting
  • Operates at 10 VDC with 0.02 A current
  • Suitable for up to 60°C environments
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Input Module
Brand
Emerson
Series
Rx3i

Electrical

Analog Resolution
16 bits
Channel Isolation
I-Coupler,Transformer
No. of Analog Inputs
6
Input Ratings
0 to 20mA, 4 to 20mA, ±20mA ±10 Vdc, 0 to 10 Vdc, ±5V, 0 to 5V, 1 to 5V
Input Type
Current/ Voltage
Power Consumption
2.97W
Supply Voltage
3.3V DC 5V DC
Terminal Type
Screw Terminal
Analog Inputs
6

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR UL HAZLOC
Certifications / Approvals
UL
