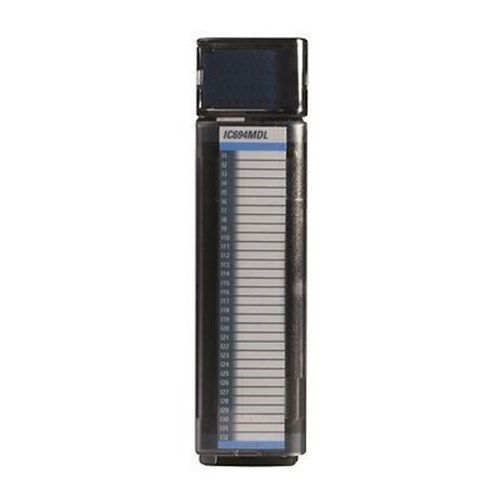

Emerson IC694MDL754CA Discrete Output Module 24VDC 32 Digital Outputs

Product Code: IC694MDL754CA

  • Supports Modbus, Profinet, Profibus protocols
  • Operates at 24 VDC with 0.75 A current
  • Flexible panel or DIN rail mounting
  • IP20 protection for reliable use
  • Approved by ATEx and IECEx standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Discrete Output Module
Brand
Emerson
Series
Rx3i

Electrical

Channel Isolation
Optical Coupler
Digital Inputs
0
Digital Outputs
32
Output Ratings
12/24 VDC
Analog Outputs
0
Output Type
Voltage
Power Consumption
1.5W (Backplane) 6.336W (Power Supply)
Supply Voltage
5V DC (Backplane) 12-24V DC (Power Supply)
Terminal Type
Screw Terminal
Analog Inputs
0

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20
Conformal Coated
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR UL HAZLOC
Certifications / Approvals
UL

Accessories & Additional Information

Development Software
PAC Machine Edition

Documents

IPD Product Catalogue V17
