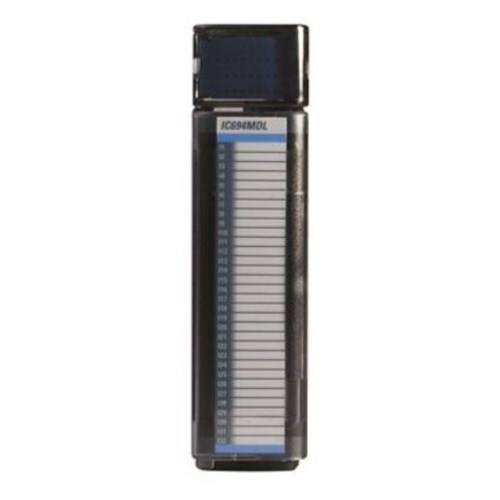

Emerson IC694MDL753 Discrete Output Module 24VDC 32 Digital Outputs

Product Code: IC694MDL753

  • Supports Modbus, Profinet, and Profibus protocols.
  • Operates at 24 VDC with 0.5 A current rating.
  • Panel or DIN Rail mounting options available.
  • Functions up to a temperature of 60°C.
  • IP20 rated for protection against solid objects.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Discrete Output Module
Brand
Emerson
Series
Rx3i

Electrical

Channel Isolation
Optical Coupler
Digital Outputs
32
No. of Digital Outputs
32
Output Ratings
12/24 VDC
Output Type
Voltage
Power Consumption
1.3W
Supply Voltage
5V DC (Backplane) 12-24V DC (Power Supply)
Terminal Type
Screw Terminal

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR UL HAZLOC
Certifications / Approvals
UL
