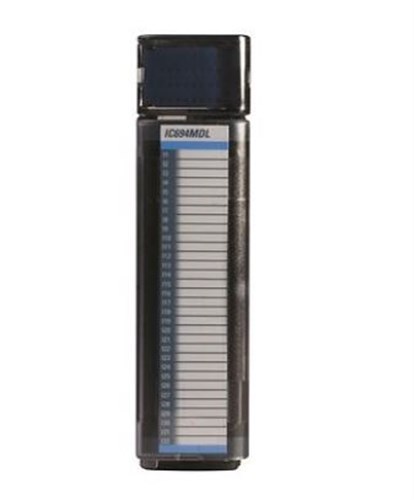

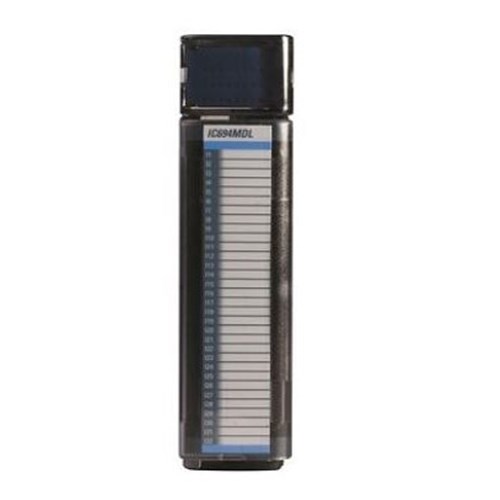

Emerson IC694MDL730 Discrete Output Module

Product Code: IC694MDL730

  • Panel and DIN Rail mountable
  • Certified for Zone 2 environments
  • Supports 2 x RJ-45, 2 x SFP media
  • Complies with CE, ATEx C1D2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Discrete Output Module
Brand
Emerson
Series
Rx3i

Electrical

Channel Isolation
Optical Coupler
Digital Inputs
0
Digital Outputs
8
Output Ratings
12 to 24 V DC (+20%, -15%), 2 A maximum per point
Analog Outputs
0
Input Ratings
12/24 V DC
Input Type
Voltage
Output Type
Positive logic
Power Consumption
0.275W
Supply Voltage
5V DC (Backplane)
Terminal Type
Screw Terminal
Analog Inputs
0

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20
Conformal Coated
No

Safety, Standards & Compliance

Hazardous Location Ratings
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR UL HAZLOC
Certifications / Approvals
UL

Accessories & Additional Information

Development Software
PAC Machine Edition
