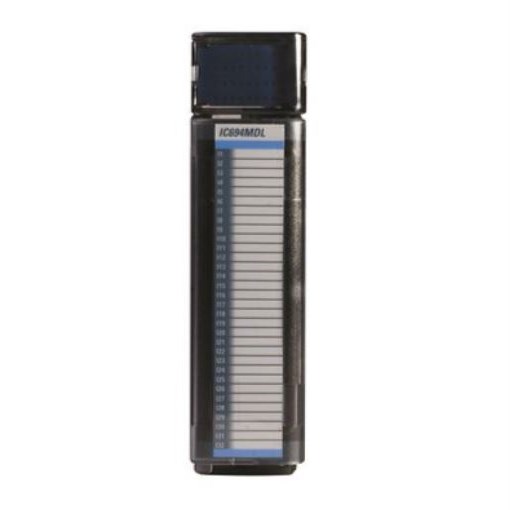

Emerson IC694MDL646 Discrete Input Module 24VDC 16 Digital Inputs

Product Code: IC694MDL646

  • Supports Modbus, Profinet, and Profibus protocols
  • Operates at 24 VDC for efficient performance
  • Flexible panel or DIN rail mounting options
  • Functions reliably up to 60°C temperature
  • IP20 rated for protection against solid objects
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Discrete Input Module
Brand
Emerson
Series
Rx3i

Electrical

Channel Isolation
Optical Coupler
Digital Inputs
16
Digital Outputs
0
Analog Outputs
0
Input Ratings
24 V DC
Input Type
Voltage
Power Consumption
0.4W (Backplane) 3W (Power Supply)
Supply Voltage
24V DC
Terminal Type
Screw Terminal
Analog Inputs
0

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20
Conformal Coated
No

Safety, Standards & Compliance

Hazardous Location Ratings
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR UL HAZLOC
Certifications / Approvals
UL

Accessories & Additional Information

Development Software
PAC Machine Edition

Documents

IPD Product Catalogue V17
