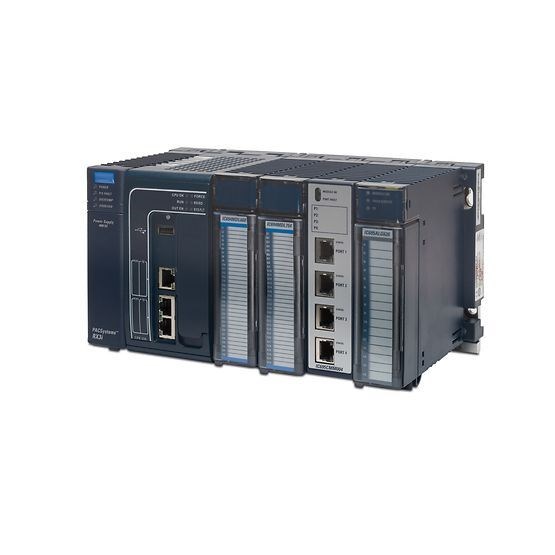

Emerson IC694MDL390 Discrete Output Module 264VAC

Product Code: IC694MDL390

  • Supports Modbus, Profinet, Profibus protocols
  • Rated for 264 VAC and 2 A current
  • Panel or DIN rail mounting options
  • Operates up to 60°C with IP20 protection
  • Includes dual RJ-45 and SFP ports
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Discrete Output Module
Brand
Emerson
Series
Rx3i

Electrical

Channel Isolation
Optical Coupler
Digital Inputs
0
Digital Outputs
5
Output Ratings
85 to 264 V AC, 2 A maximum per point, 5 A maximum per module at 45 °C, 2 A maximum per module at 60 °C
Analog Outputs
0
Input Ratings
120/240 V AC
Input Type
Voltage
Output Type
AC, isolated
Power Consumption
0.55W
Supply Voltage
5V DC
Terminal Type
Screw Terminal
Analog Inputs
0

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20
Conformal Coated
No

Safety, Standards & Compliance

Hazardous Location Ratings
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR UL HAZLOC
Certifications / Approvals
UL

Accessories & Additional Information

Development Software
PAC Machine Edition
