Products

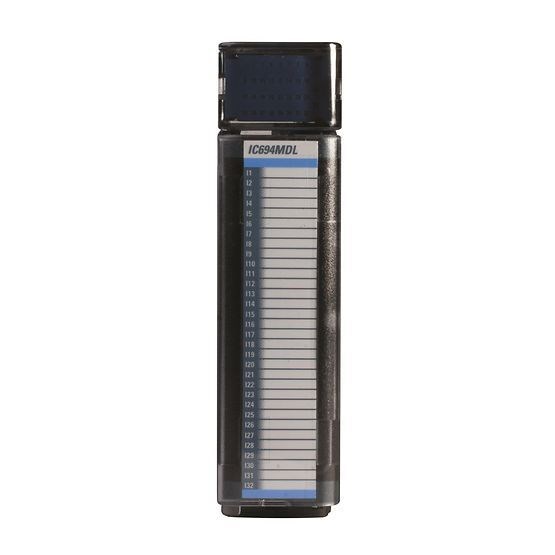

Emerson IC694MDL231 Discrete Input Module 264VAC 8 Digital Inputs

Product Code: IC694MDL231

  • Supports Modbus, Profinet, and Profibus protocols
  • Operates at a voltage of 264 VAC
  • Suitable for panel or DIN rail mounting
  • Functions in temperatures up to 60°C
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Discrete Input Module
Brand
Emerson
Series
Rx3i

Electrical

Channel Isolation
Optical Coupler
Digital Inputs
8
Digital Outputs
0
Analog Outputs
0
Input Ratings
240 VAC
Input Type
Voltage
Power Consumption
0.3W
Supply Voltage
5V DC
Terminal Type
Screw Terminal
Analog Inputs
0

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20
Conformal Coated
No

Safety, Standards & Compliance

Hazardous Location Ratings
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR UL HAZLOC
Certifications / Approvals
UL

Accessories & Additional Information

Development Software
PAC Machine Edition

Documents

IPD Product Catalogue V17
