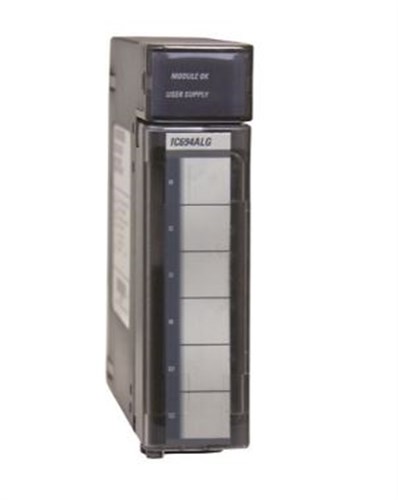

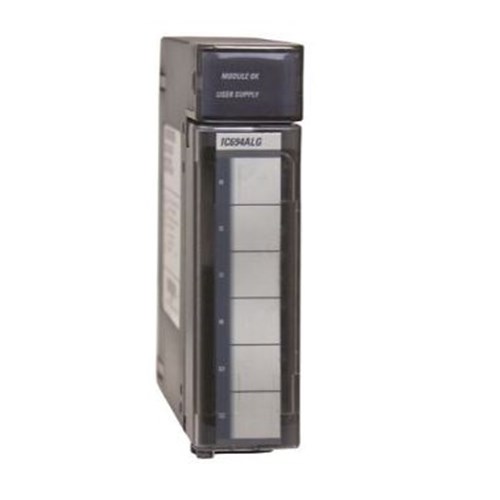

Emerson IC694ALG542 Analog Mixed I/O Module

Product Code: IC694ALG542

  • High-performance I/O module for automation systems
  • Supports multiple input/output configurations
  • Compact design for space-saving installation
  • Easy integration with existing systems
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Mixed I/O Module
Brand
Emerson
Series
Rx3i

Electrical

Analog Resolution
16 bits
Channel Isolation
250 V AC continuous, 1500 V AC for 1 minute
Digital Inputs
0
Digital Outputs
0
Output Ratings
0 VDC- 10 VDC -10 VDC -10 VDC 4 mA - 20 mA 0 mA - 20 mA
Analog Outputs
2 Ch
Input Ratings
0 VDC- 10 VDC -10 VDC -10 VDC 4 mA - 20 mA 0 mA - 20 mA 4 mA - 20 mA (Enhanced)
Input Type
Differential Analog Voltage / Current
Output Type
Single Analog Voltage / Current
Power Consumption
0.475W (Backplane) 3.6W (Isolated)
Supply Voltage
5 VDC (Backplane) 24 VDC (Isolated)
Terminal Type
Screw Terminal
Analog Inputs
4 Ch

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20
Conformal Coated
No

Safety, Standards & Compliance

Hazardous Location Ratings
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR UL HAZLOC
Certifications / Approvals
UL

Accessories & Additional Information

Development Software
PAC Machine Edition
