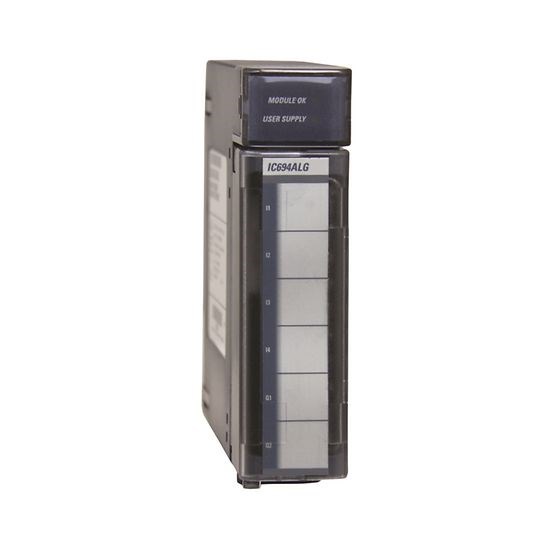

Emerson IC694ALG392CA Analog Output Module 10VDC 8 Analogue Outputs 8 Digital Inputs

Product Code: IC694ALG392CA

  • Supports Modbus, Profinet, Profibus protocols
  • Operates at 10 VDC and 0.02 A
  • Panel and DIN Rail mounting options
  • Suitable for temperatures up to 60°C
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Output Module
Brand
Emerson
Series
Rx3i

Electrical

Analog Resolution
16 bits
Channel Isolation
250 V AC continuous, 1500 V DC for 1 minute
Digital Inputs
0
Digital Outputs
0
Output Ratings
1 VDC- 10 VDC -10 VDC -10 VDC 4 mA - 20 mA 0 mA - 20 mA
Analog Outputs
8 Ch
Output Type
Single Analog Voltage / Current
Power Consumption
0.55W (Backplane) 7.56W (Isolated)
Supply Voltage
5 VDC (Backplane) 24 VDC (Isolated)
Terminal Type
Screw Terminal
Analog Inputs
0

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20
Conformal Coated
Yes

Safety, Standards & Compliance

Hazardous Location Ratings
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR UL HAZLOC
Certifications / Approvals
UL

Accessories & Additional Information

Development Software
PAC Machine Edition
