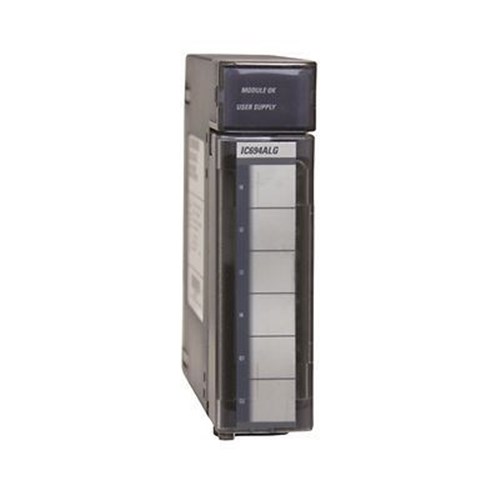

Emerson IC694ALG391 Analog Output Module 5VDC

Product Code: IC694ALG391

  • Supports Modbus, Profinet, Profibus protocols
  • Operates at 5 VDC with 0.02 A current
  • Suitable for panel and DIN rail mounting
  • Functions in temperatures up to 60°C
  • IP20 protection rating for safe use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Output Module
Brand
Emerson
Series
Rx3i

Electrical

Analog Resolution
12 bits
Channel Isolation
Galvanic Isolation
No. of Analog Outputs
2 Ch
Output Ratings
1 VDC- 5 VDC 0 VDC -5 VDC 4 mA - 20 mA 0 mA - 20 mA
Analog Outputs
2 Ch
Output Type
Single Analog Current
Power Consumption
0.15W (Backplane) 5.16W (Isolated)
Supply Voltage
5 VDC (Backplane) 24 VDC (Isolated)
Terminal Type
Screw Terminal

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
140mm
Height
145mm
Width
34mm

Environmental

Storage Temperature
0°C to 60°C
Operating Temperature
-40°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Hazardous Location Ratings
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR UL HAZLOC
Certifications / Approvals
UL
